Gallery dan Spesifikasi MV Agusta F3 800 AGO

Last Updated on September 8, 2014 by

GILAMOTOR.com – MV Agusta F3 800 dibuat sebagai edisi terbatas, cuma 300 unit saja. Salah satu tujuan utamanya juga sebagai penghormatan kepada Giacomo Agostini, jawara balapan motor asal Italia yang akrab disapa AGO.

Seperti MV Agusta modern lainnya, F3 800 AGO hadir dengan segala keuntungan dari fitur MVICS (Motor & Vehicle Integrated Control System) yang menempatkan pengendara dalam kendali penuh atas performa motor itu.

Dikatakan MV Agusta, banyak parameter yang dapat disesuaikan untuk menyesuaikan respon motor sesuai keahlian masing-masing pengendara.

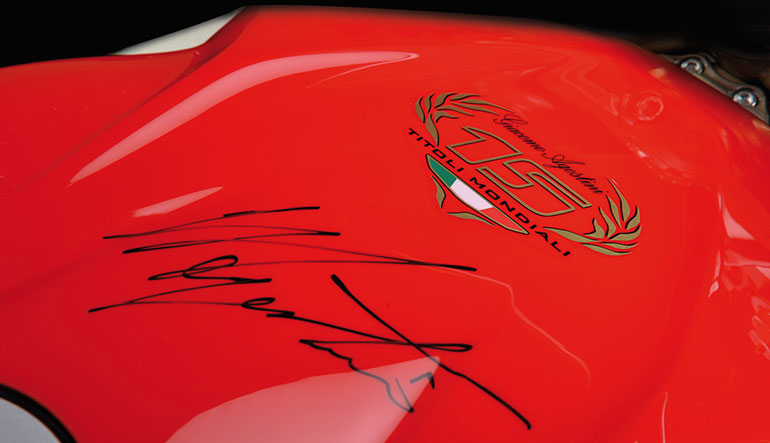

Sebagai edisi yang sangat spesial, akan ada tanda tangan Giacomo Agostini pada tangkinya dan pada yoke nya akan diberi nomer dengan plat perak. Tak ketinggalan, pembeli juga akan mendapatkan sertifikat keaslian yang ditandatangi oleh AGO.

Motor ini dipasarkan awal Mei dengan harga sekitar Rp 379 juta.

MV Agusta F3 800 AGO Technical Specification

PERFORMANCE

Maximum speed* 269.0 km/h (167.1 mph)

FRAME

Type ALS Steel tubular trellis

Rear swing arm pivot plates material Aluminum alloy

FRONT SUSPENSION

Type Marzocchi “UPSIDE DOWN” telescopichydraulic fork with rebound-compression damping and spring preload external and separate adjustment

Fork dia. 43 mm (1.69 in.)

Fork travel 125 mm (4.92 in.)

REAR SUSPENSION

Type Progressive Sachs, single shock absorber with rebound and compression

damping and spring preloadadjustment

Single sided swing arm material Aluminum alloy

Wheel travel 123 mm (4.84 in.)

BRAKES

Front brake Double floating disc with Ø 320 mm

(Ø 12.6 in.) diameter, with steel braking

disc and flange

Front brake caliper Brembo radial-type monobloc,

with 4 pistons Ø 34 mm (Ø 1.34 in.)

Rear brake

Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.

Rear brake caliper Brembo with 2 pistons – Ø 34 mm (Ø 1.34 in.)

ABS System Bosch

9 Plus

with Race Mode and

RLM

(Rear wheel Lift-up Mitigation)

WHEELS

Front: Material/size Forged aluminum alloy 3.50” x 17”

Rear: Material/size Forged aluminum alloy 6.00” x 17”

TIRES

Front 120/70 – ZR 17 M/C (58 W)

Rear 190/55 – ZR 17 M/C (75 W)

FAIRING

Material Thermoplastic/Carbon fiber

ENGINE

Type Three cylinder, 4 stroke, 12 valve

Timing system “D.O.H.C”

Total displacement 798 cm

3 (48.7 cu. in.)

Compression ratio 13.3:1

Starting Electric

Bore x stroke 79 mm x 54.3 mm (3.1 in. x 2.1 in.)

Max. power – rpm. (at the crankshaft)

108.8 kW (148 hp) at 13.000 r.p.m.

Max. torque – r.p.m. 88 Nm (8.97 kgm) at 10.600 r.p.m.

Cooling system

Cooling with separated liquid and oil radiators

Engine management system

Integrated ignition – injection system MVICS

(Motor & Vehicle Integrated Control System)

with six injectors Engine control unit Eldor

EM2.0, throttle body full drive by wire

Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire

Torque control with four maps,

TractionControl with eight levels of intervention

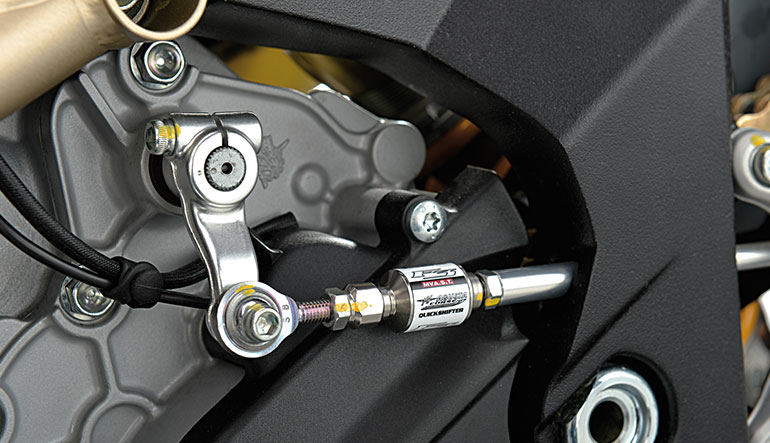

Electronic quick shift MV EAS (Electronically Assisted Shift)

Clutch Wet, multi-disc slipper clutch

Transmission Cassette style; six speed, constant mesh

Primary drive 19/36

Final drive ratio 17/41

ELECTRICAL EQUIPMENT

Voltage 12 V

Alternator 350 W at 5000 r.p.m.

Battery 12 V – 8.6 Ah

DIMENSIONS AND WEIGHT

Wheelbase 1380 mm (54.33 in.)

Overall length 2060 mm (81.01 in.)

Overall width 725 mm (28.54 in.)

Saddle height 805 mm (31.69 in.

Min. ground clearance 125 mm (4.92 in.)

Trail 99 mm (3.89 in.)

Dry weight 377lbs
