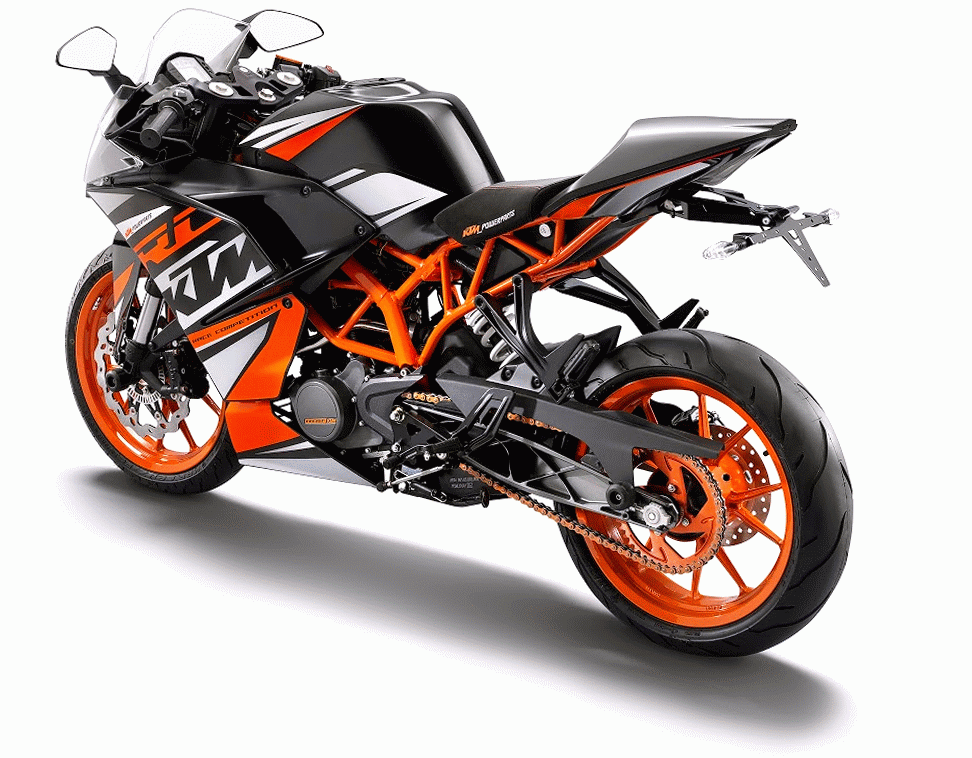

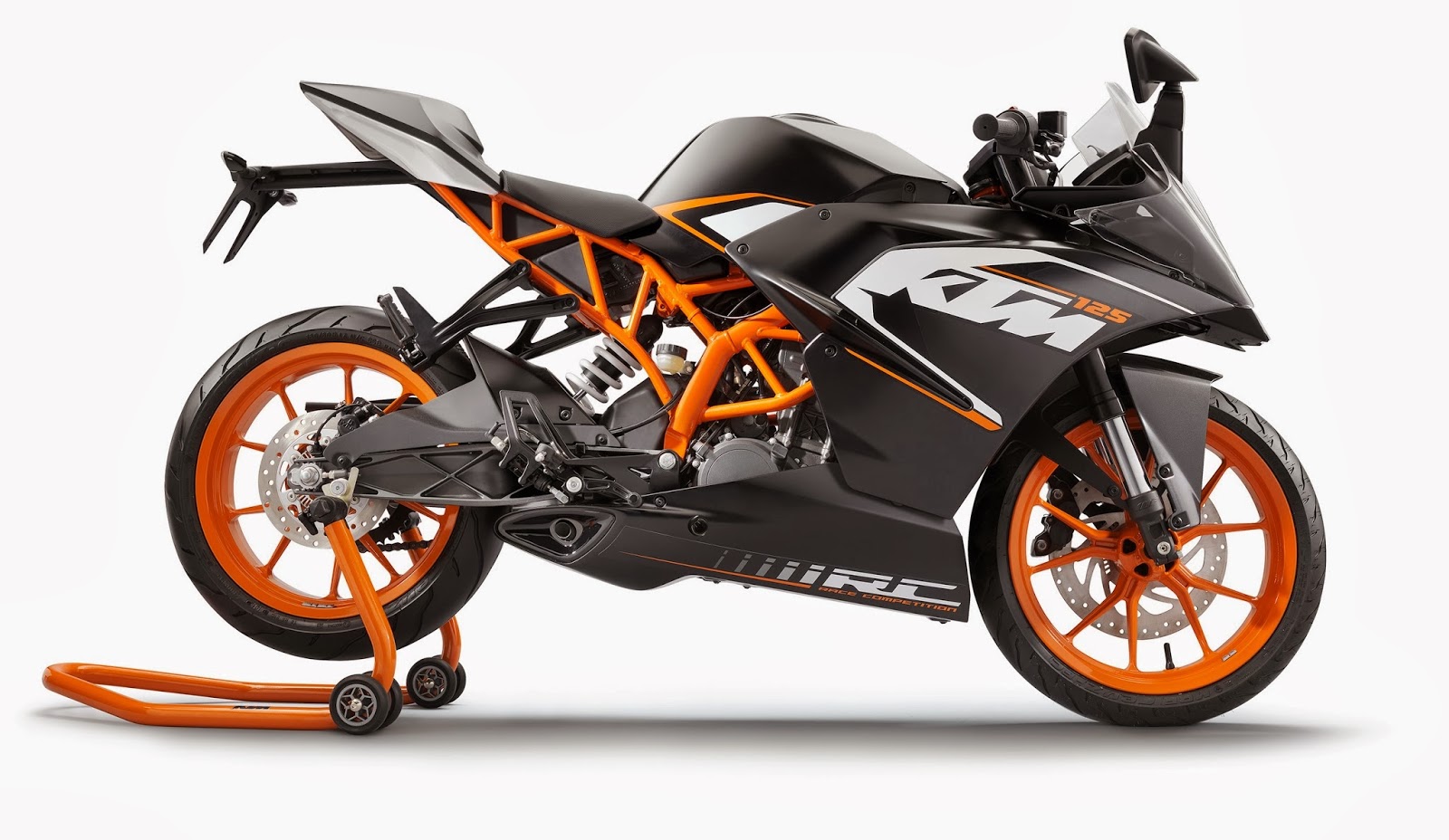

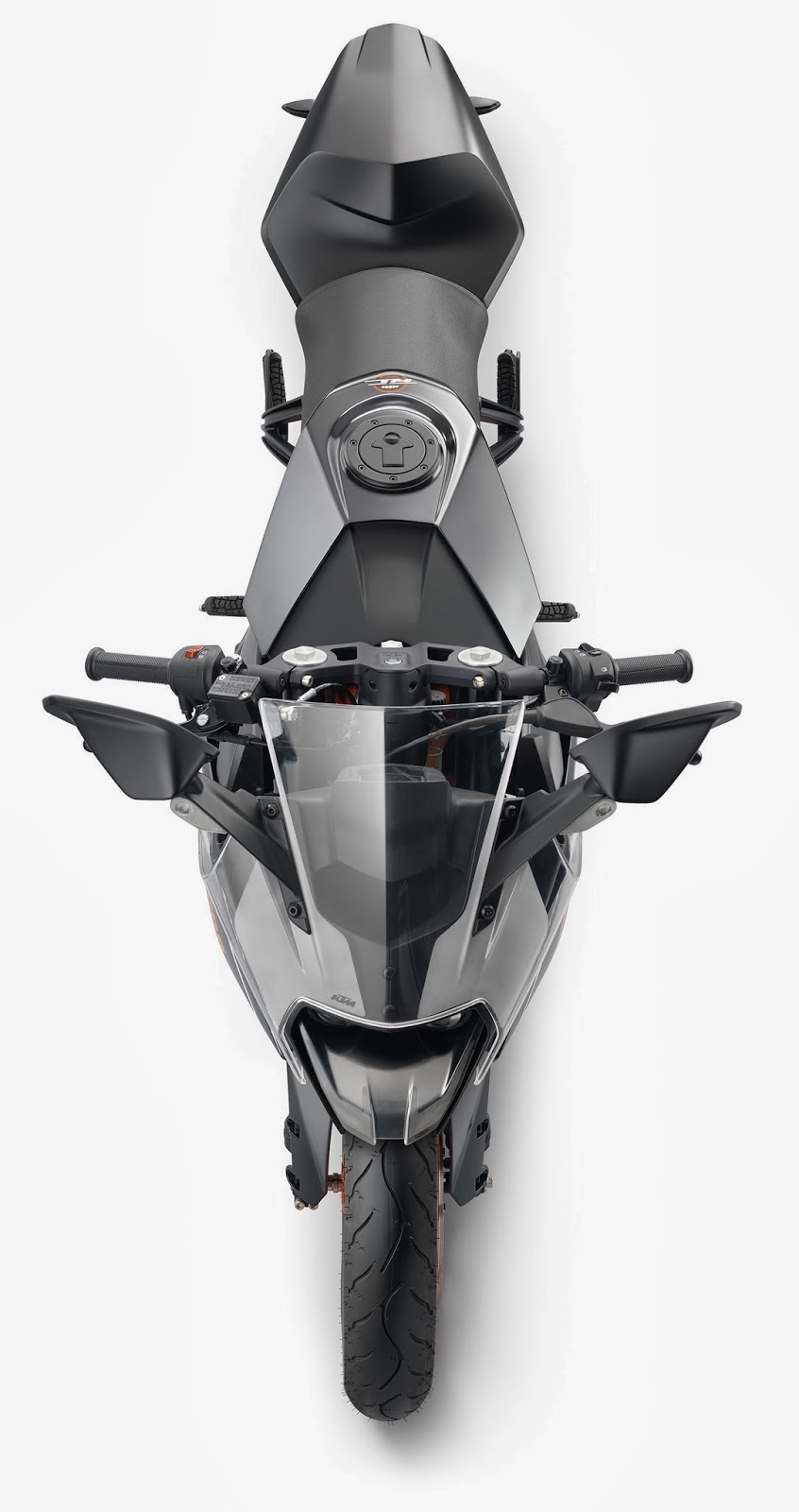

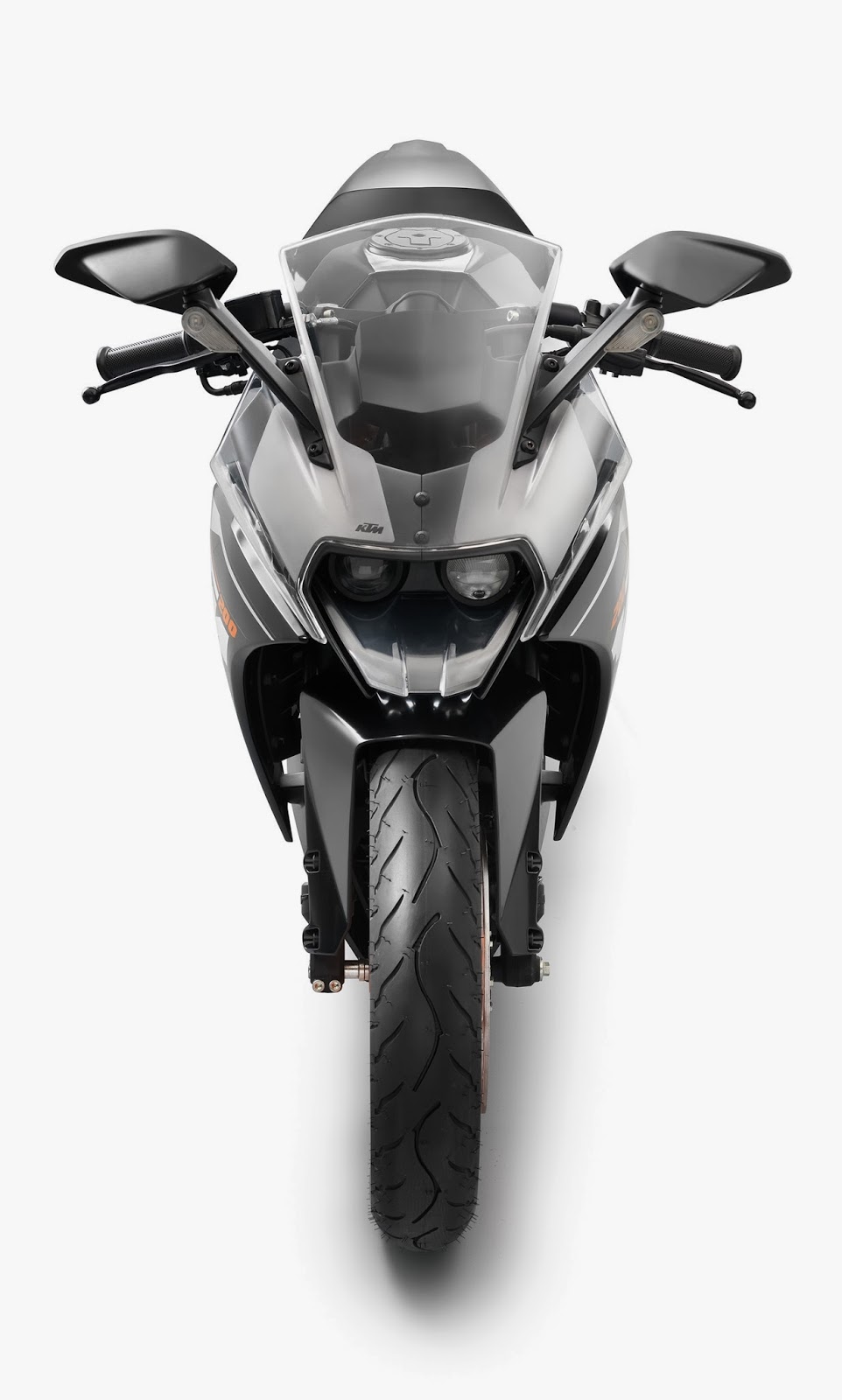

Foto KTM RC 125, RC 200, RC 390 dan Spesifikasinya

Last Updated on September 26, 2014 by

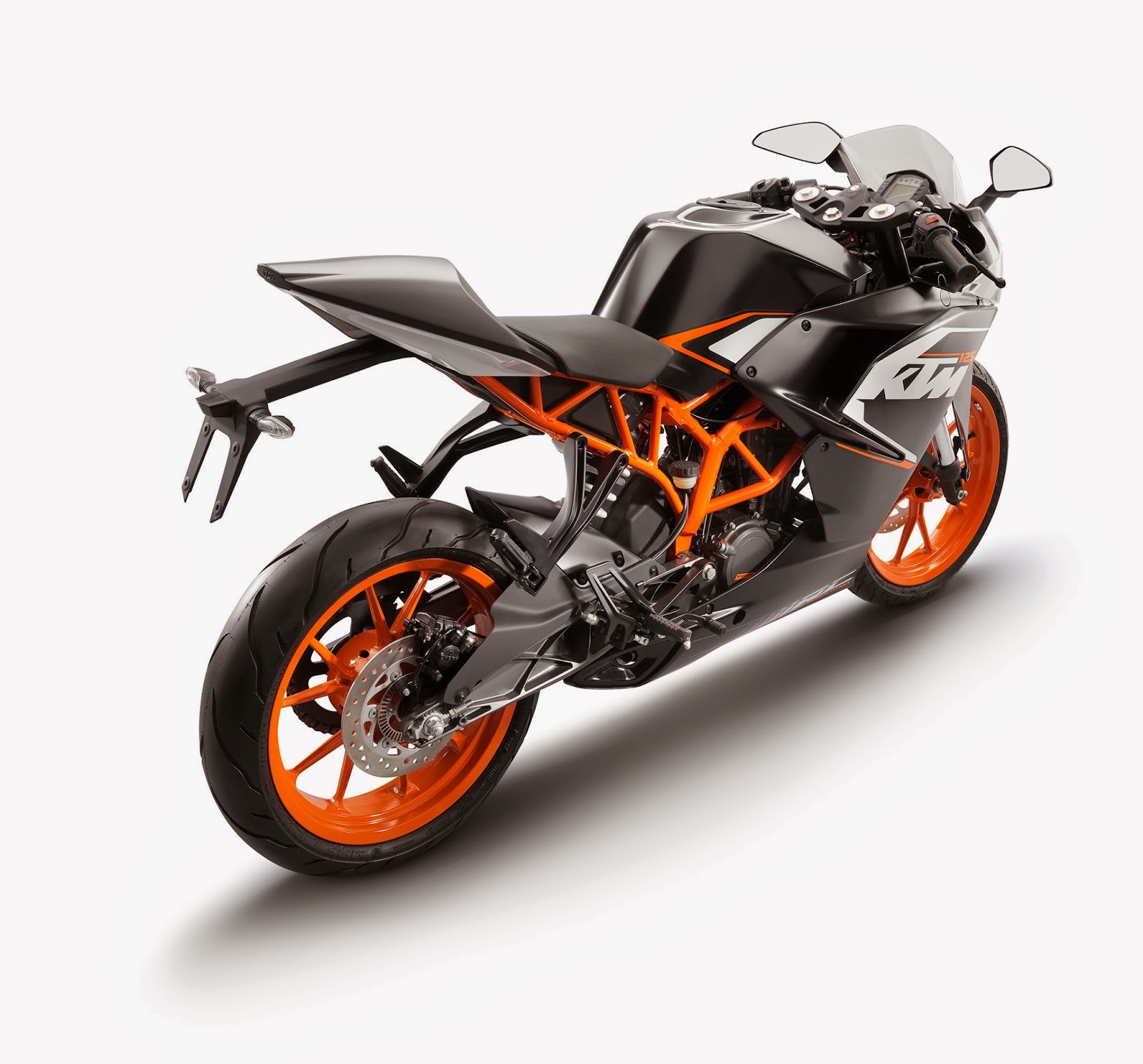

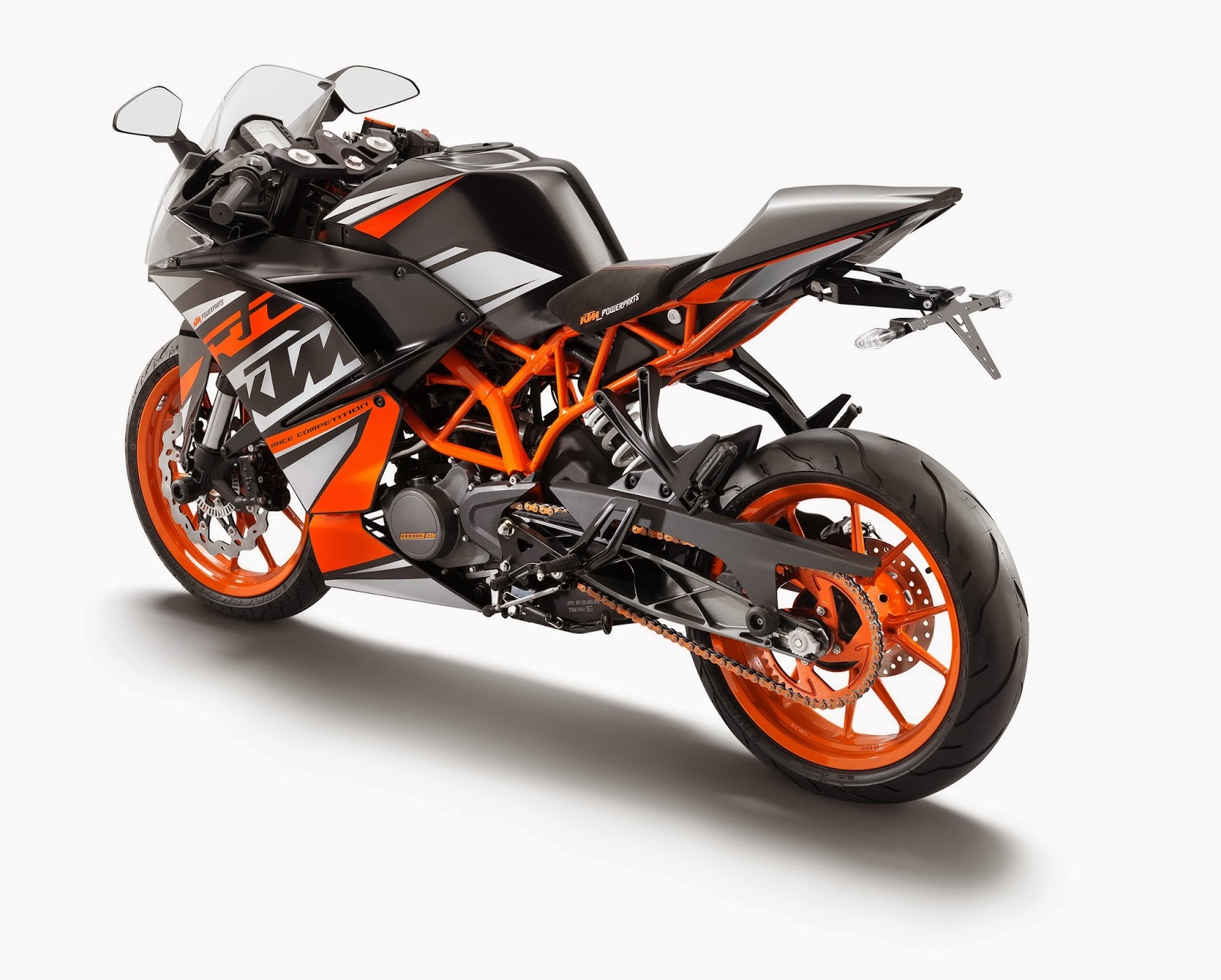

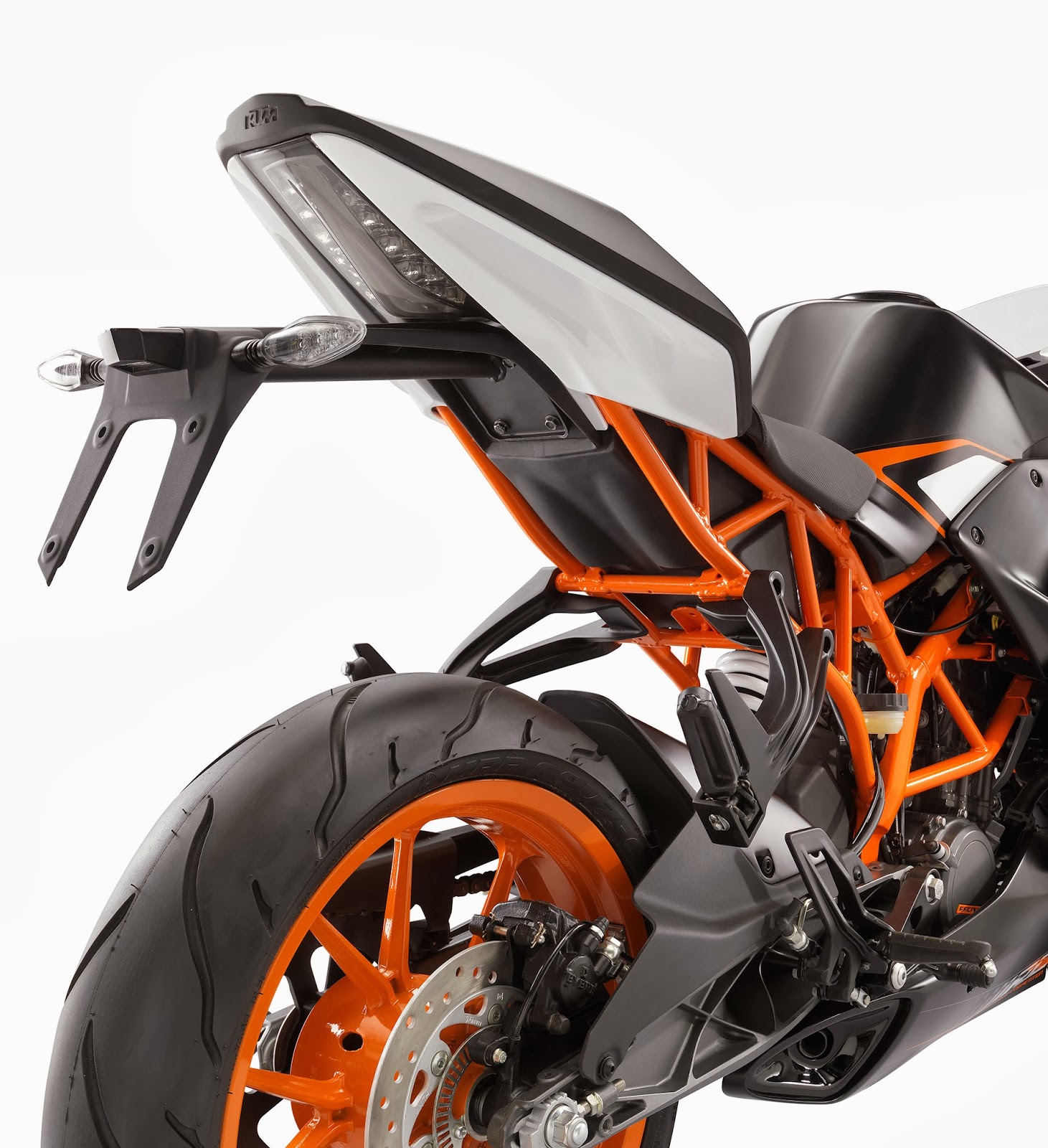

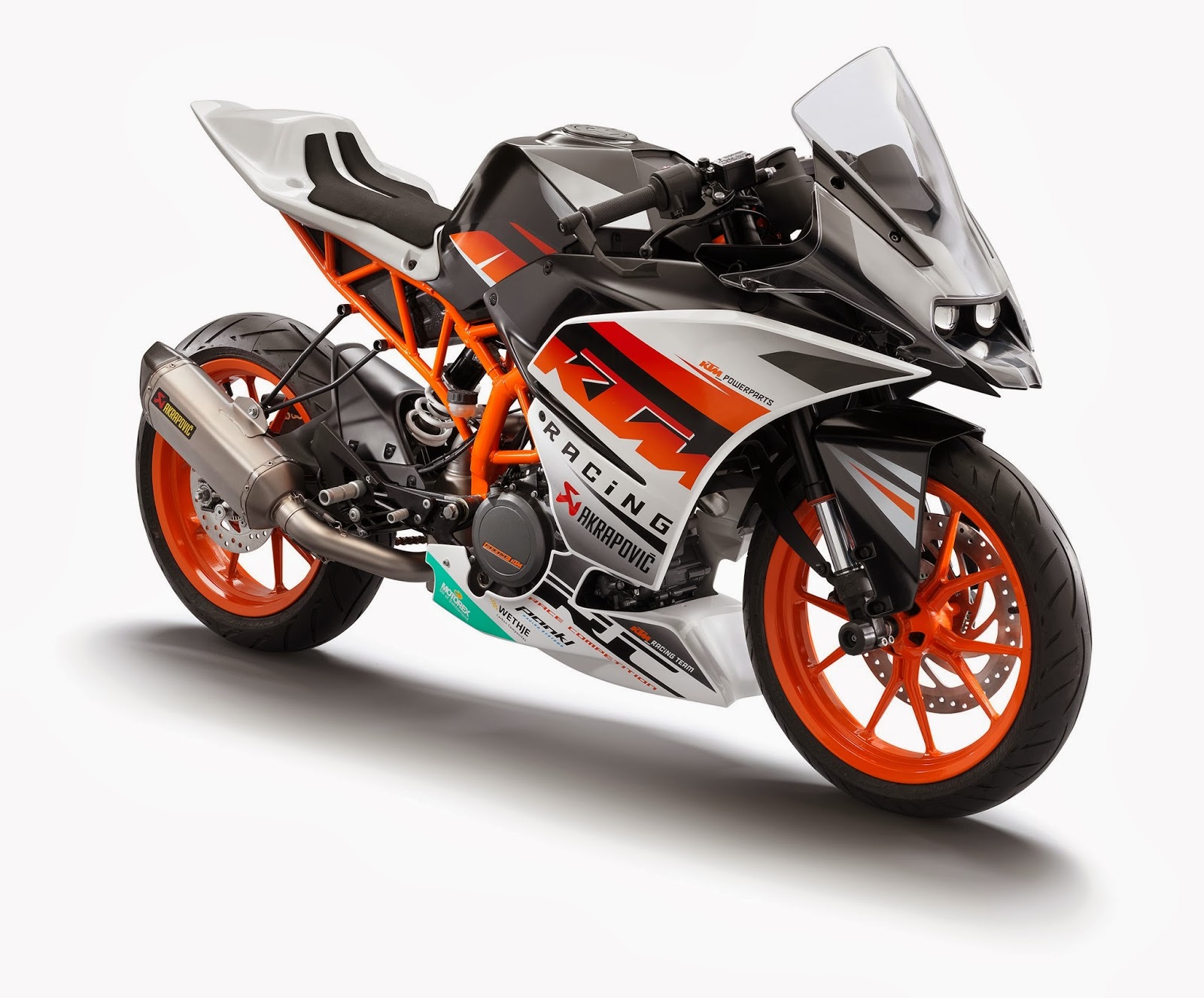

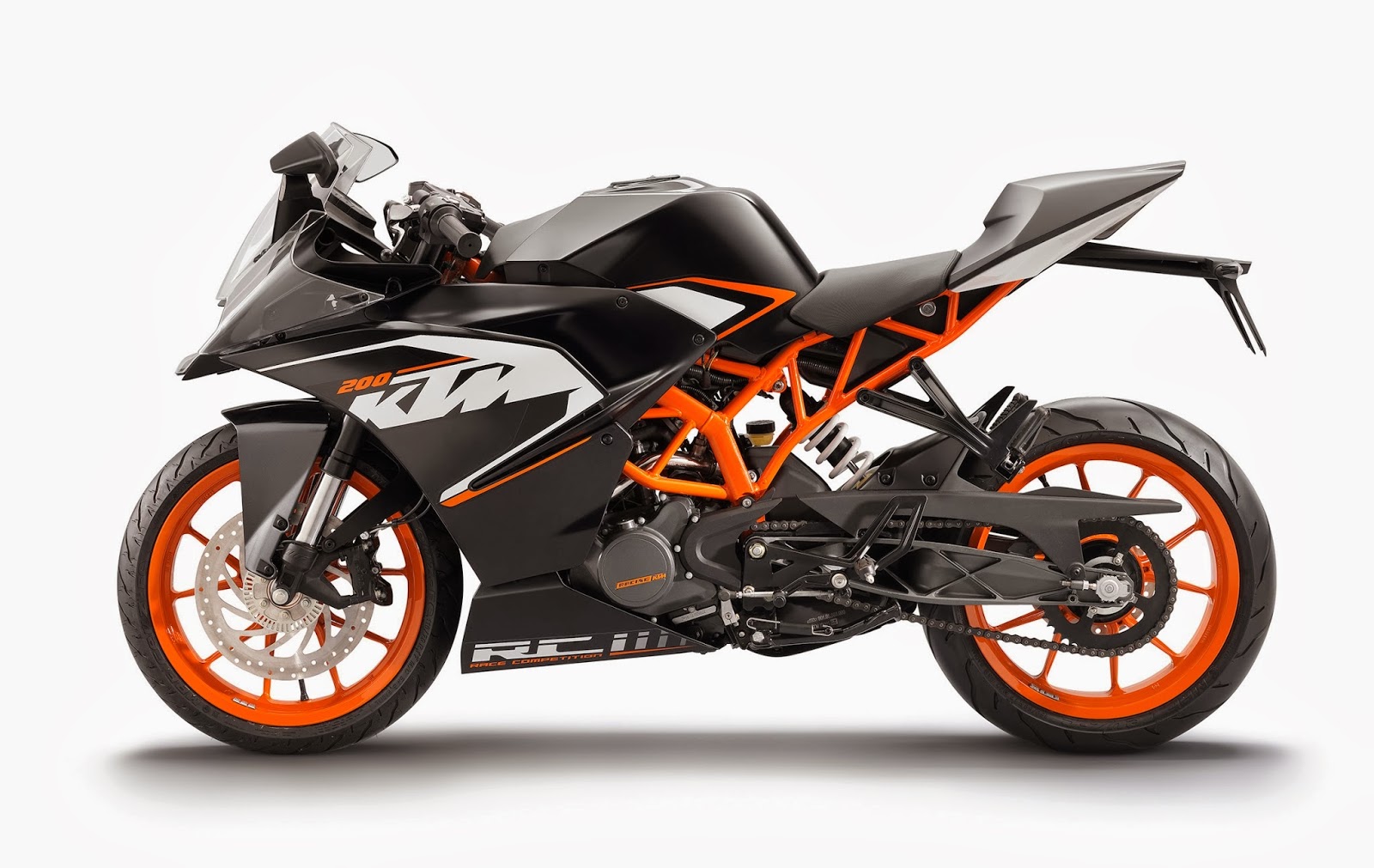

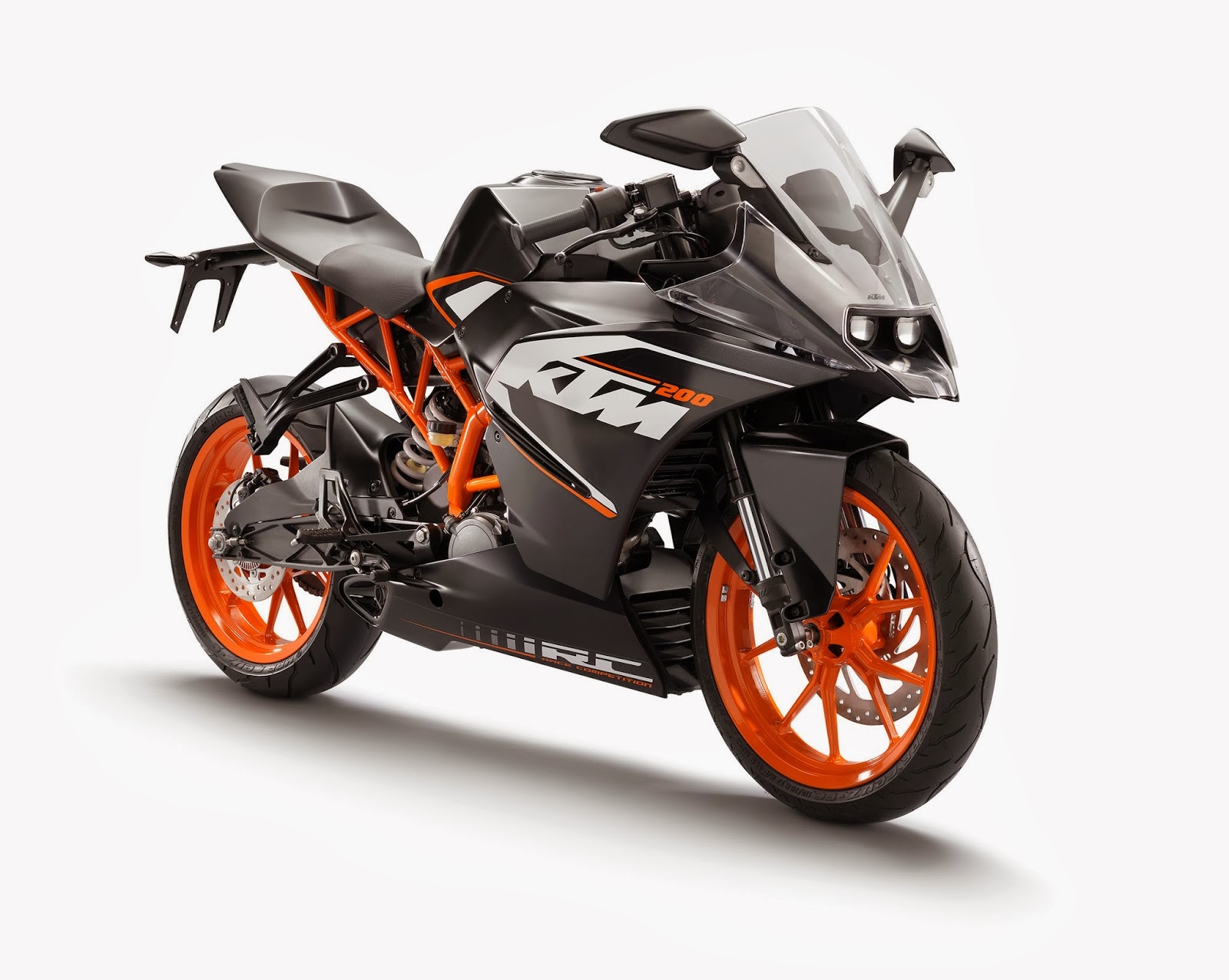

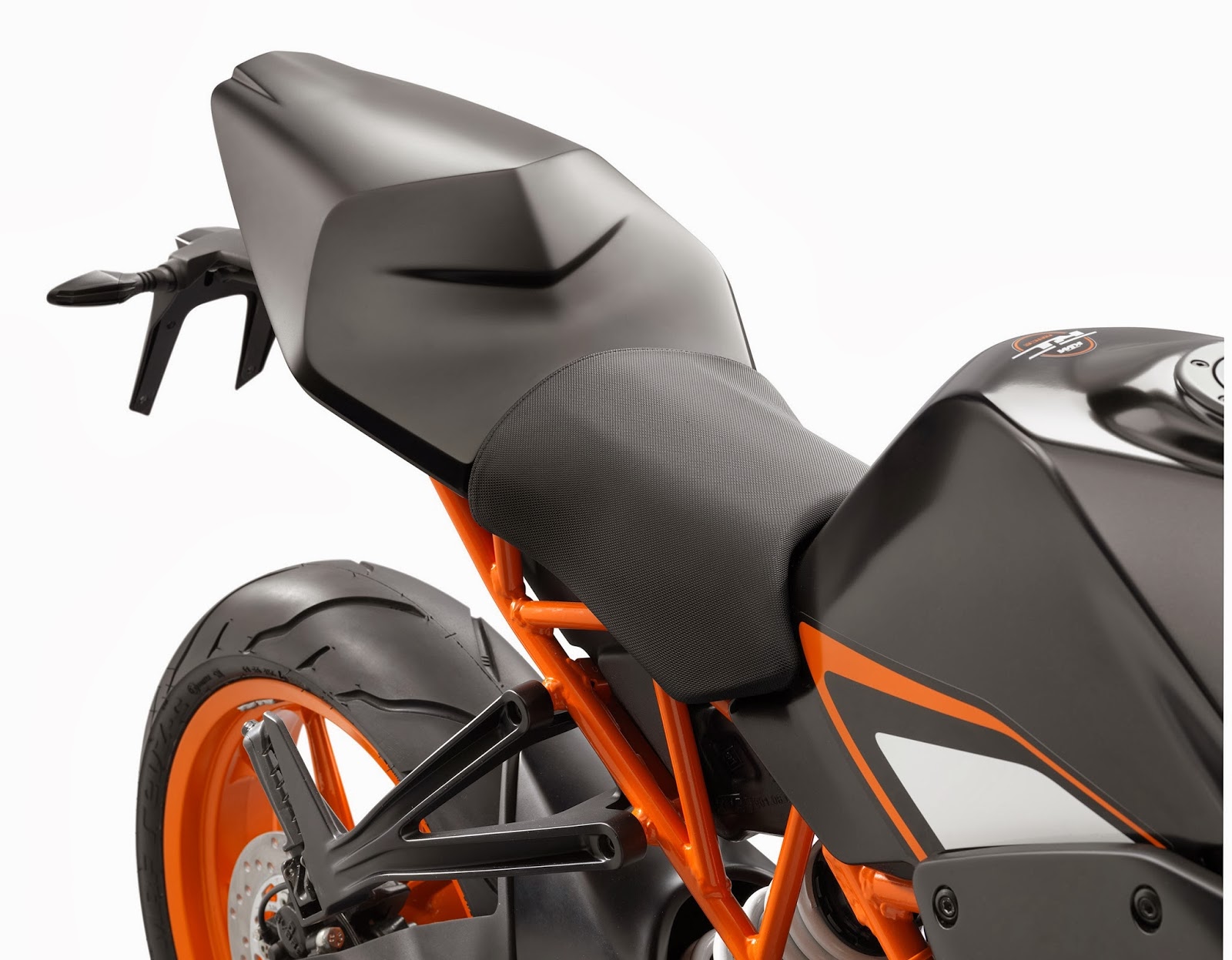

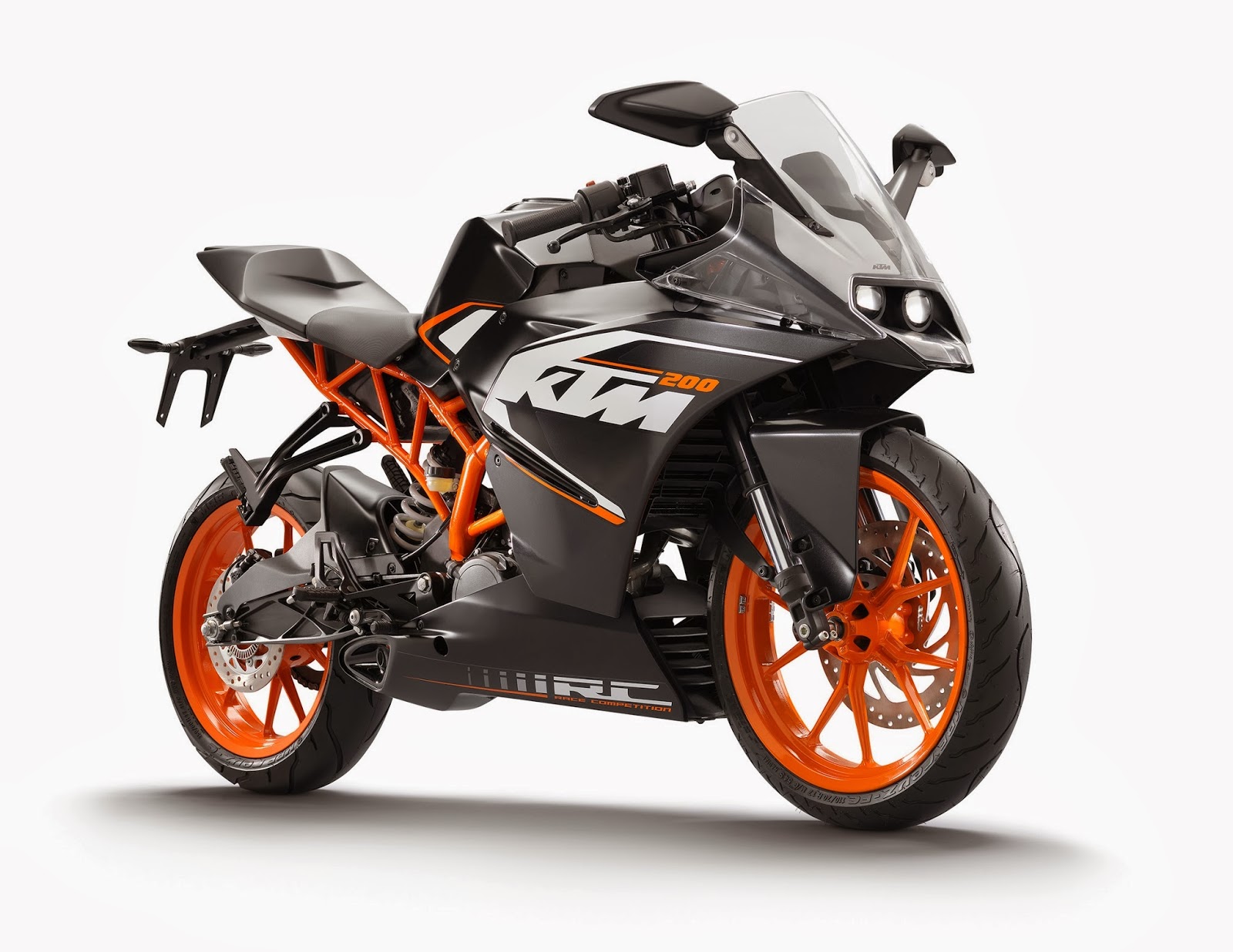

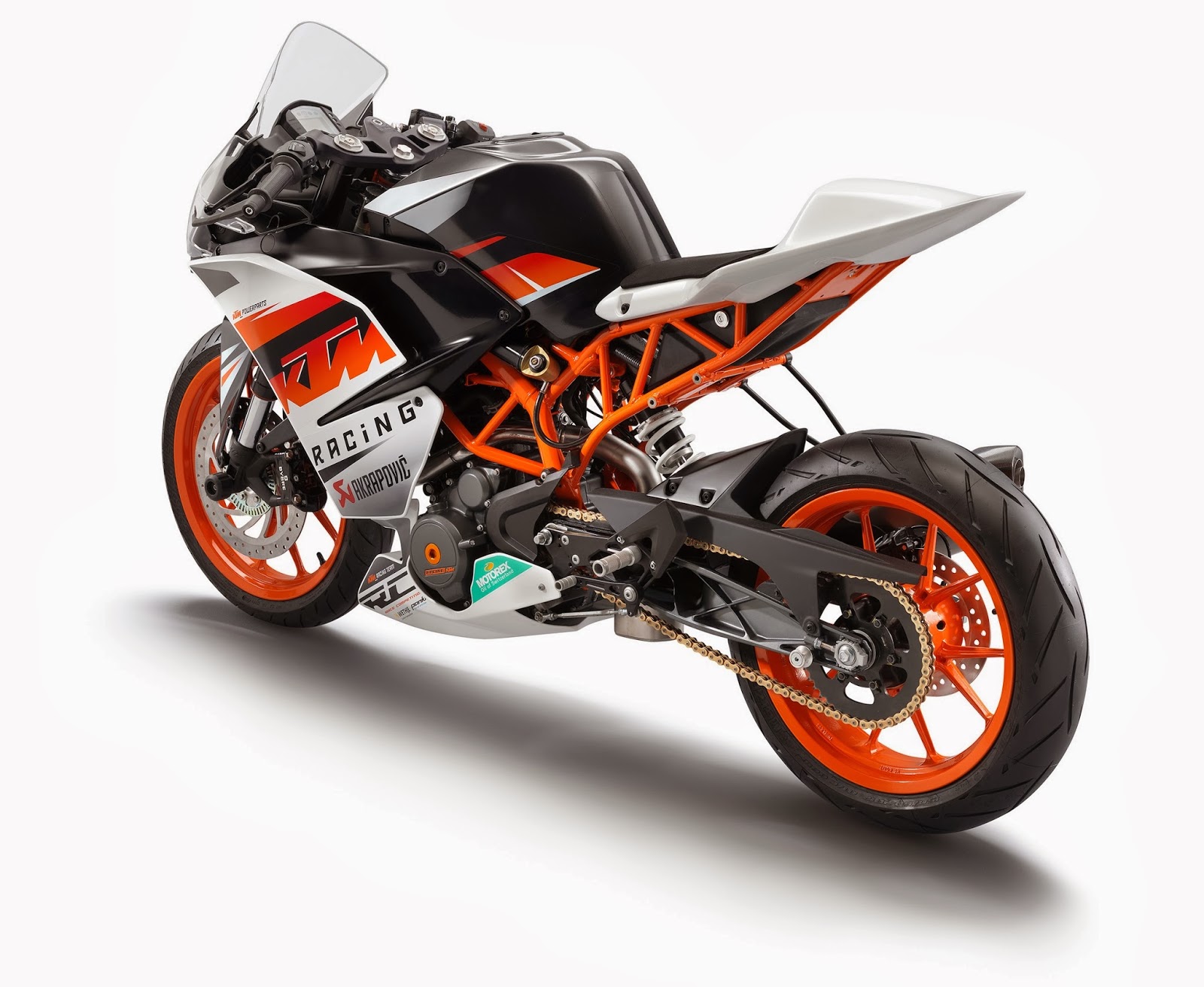

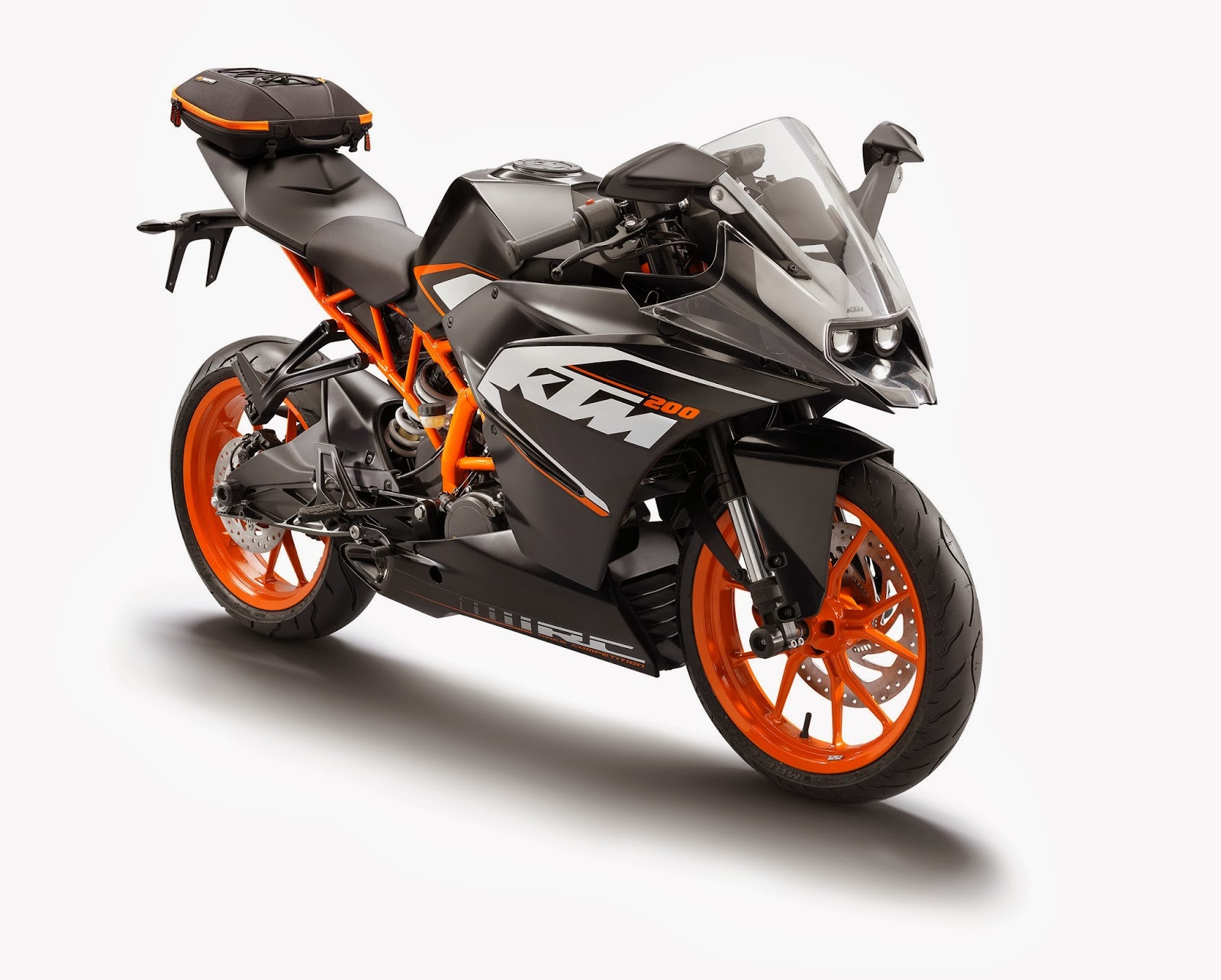

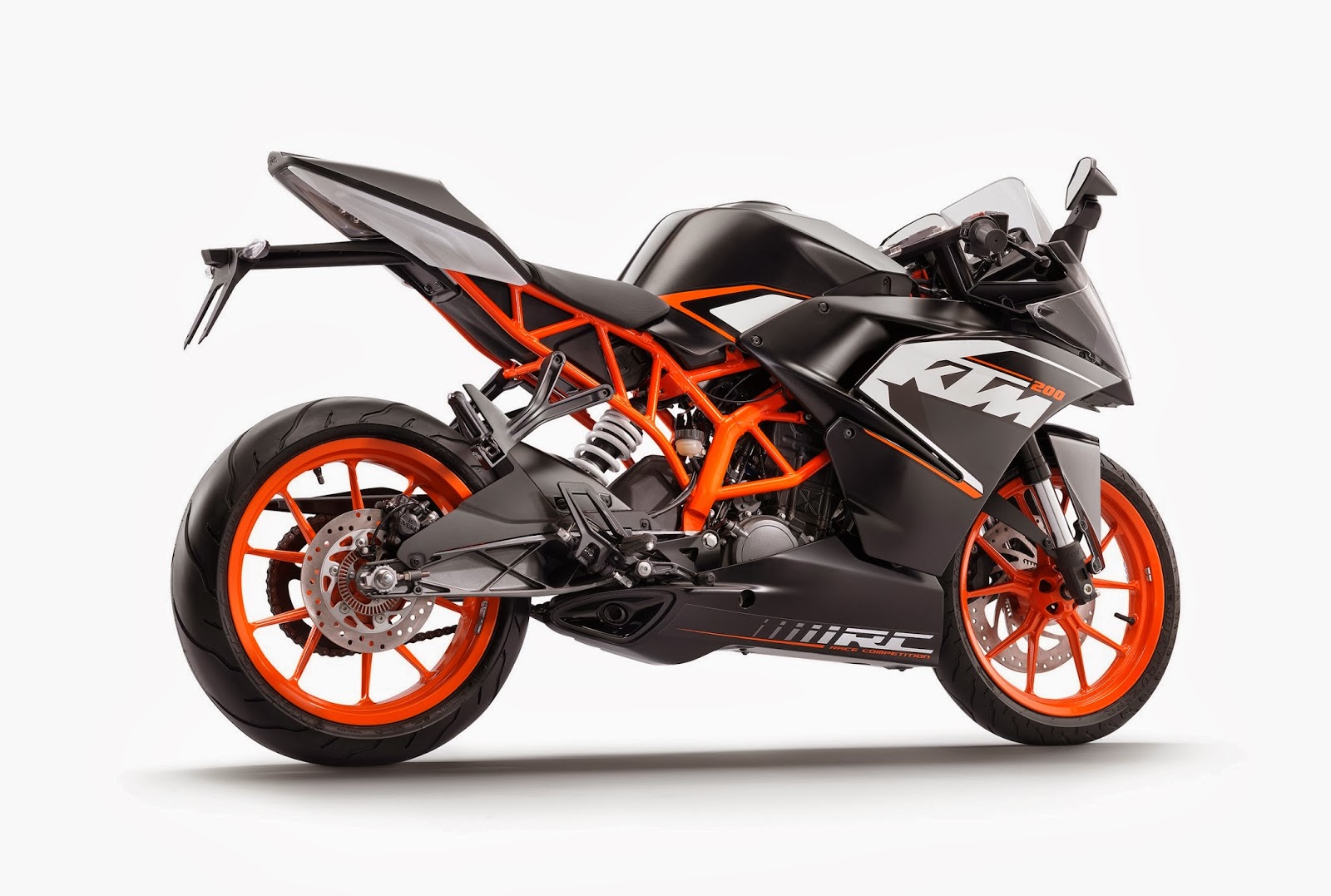

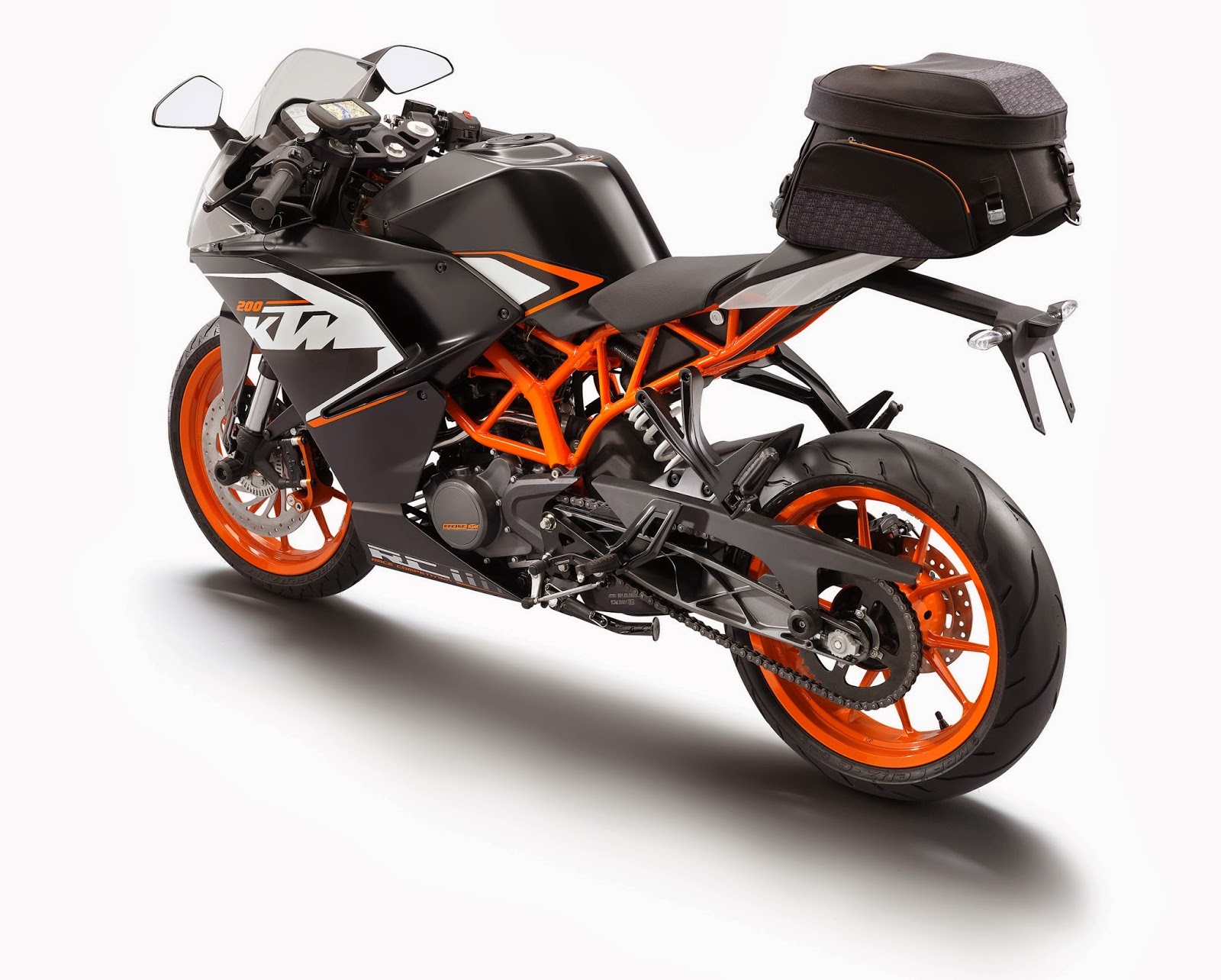

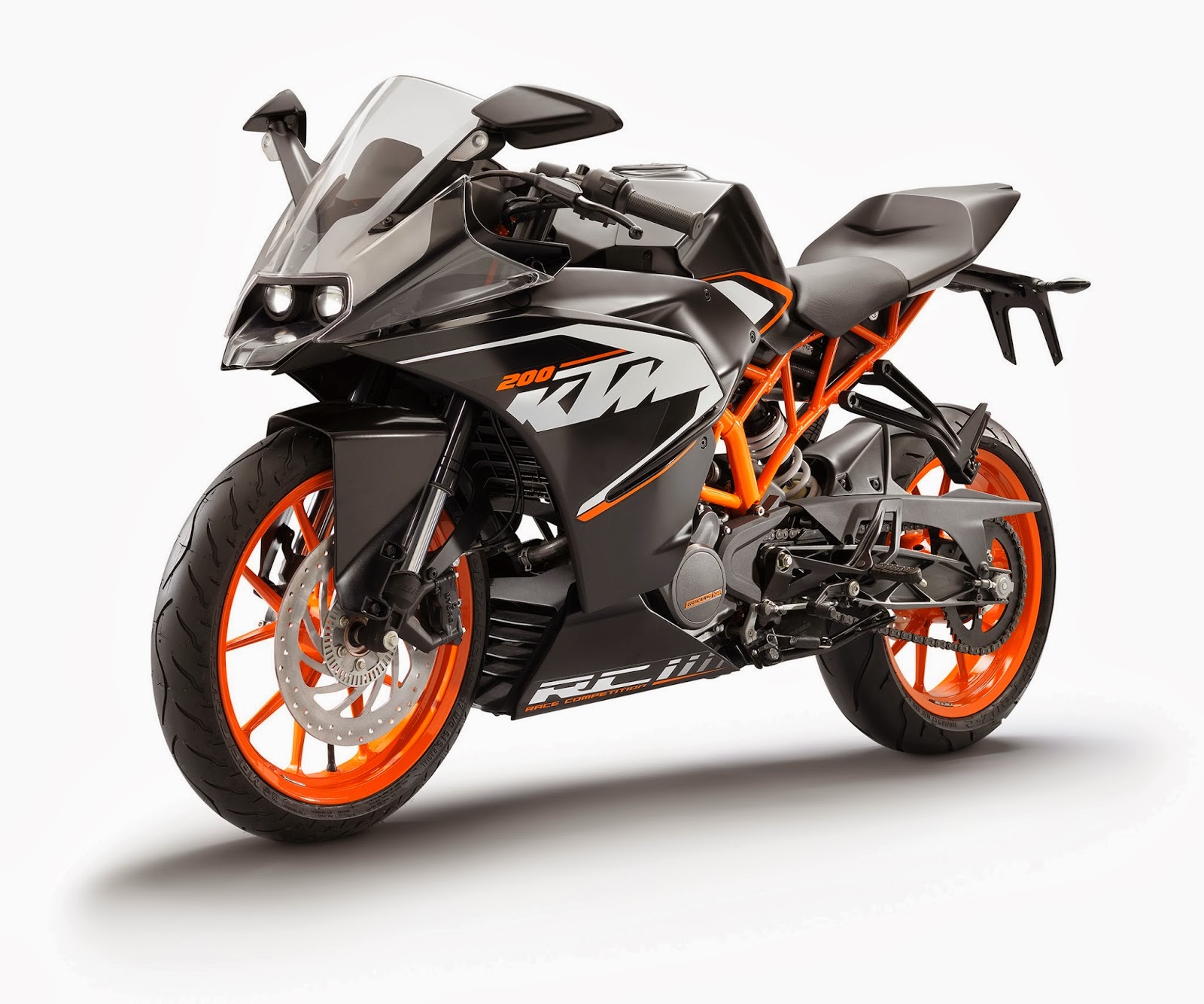

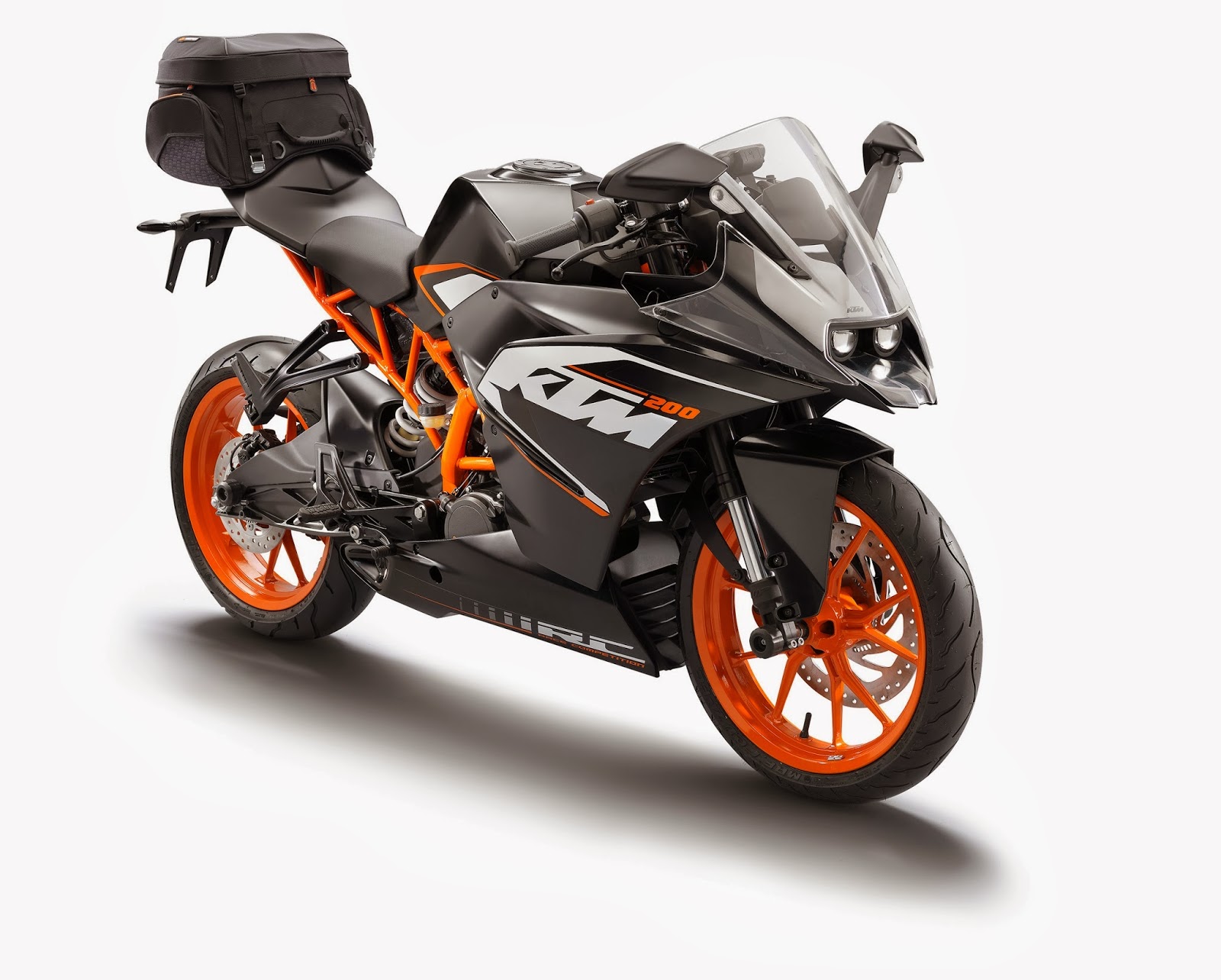

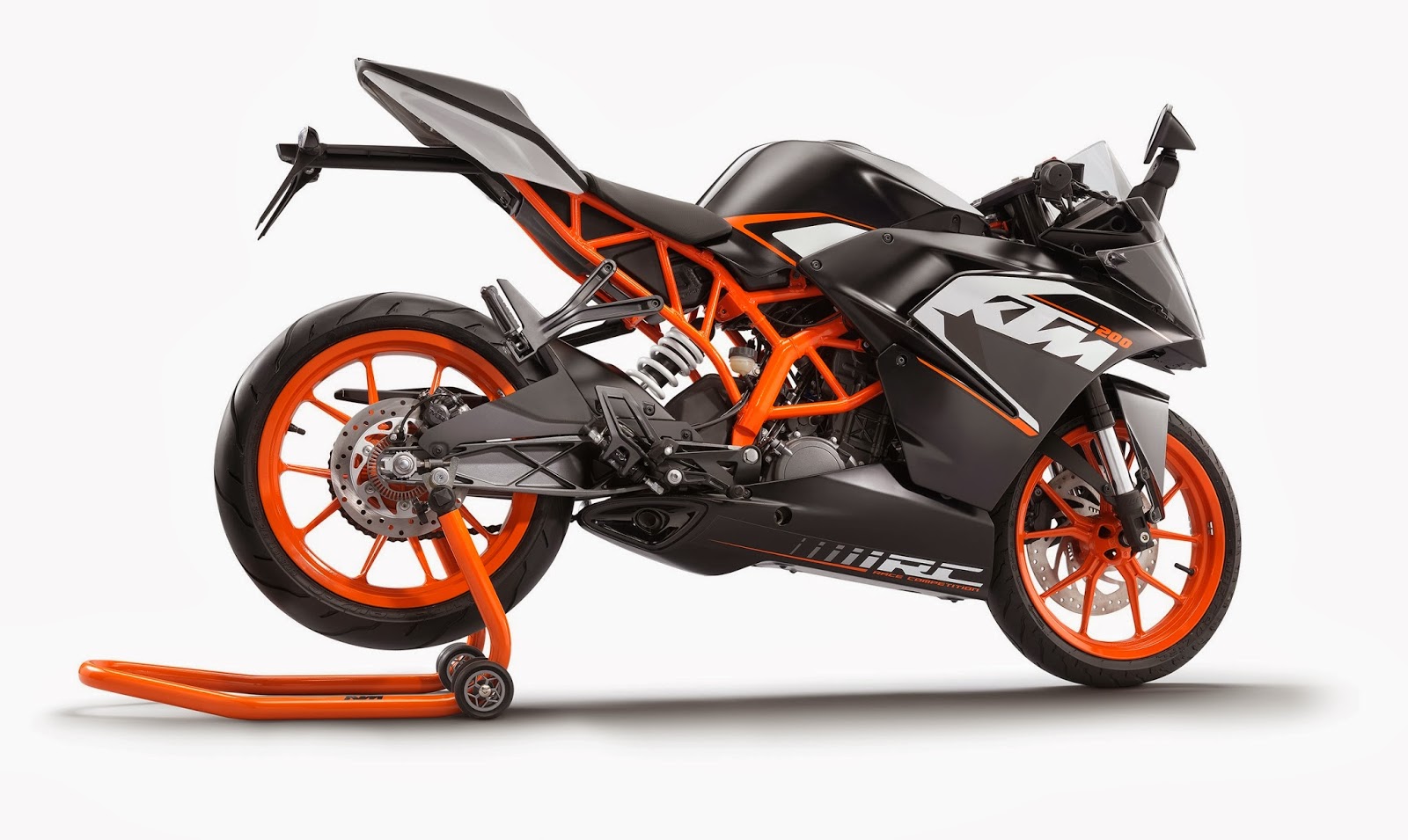

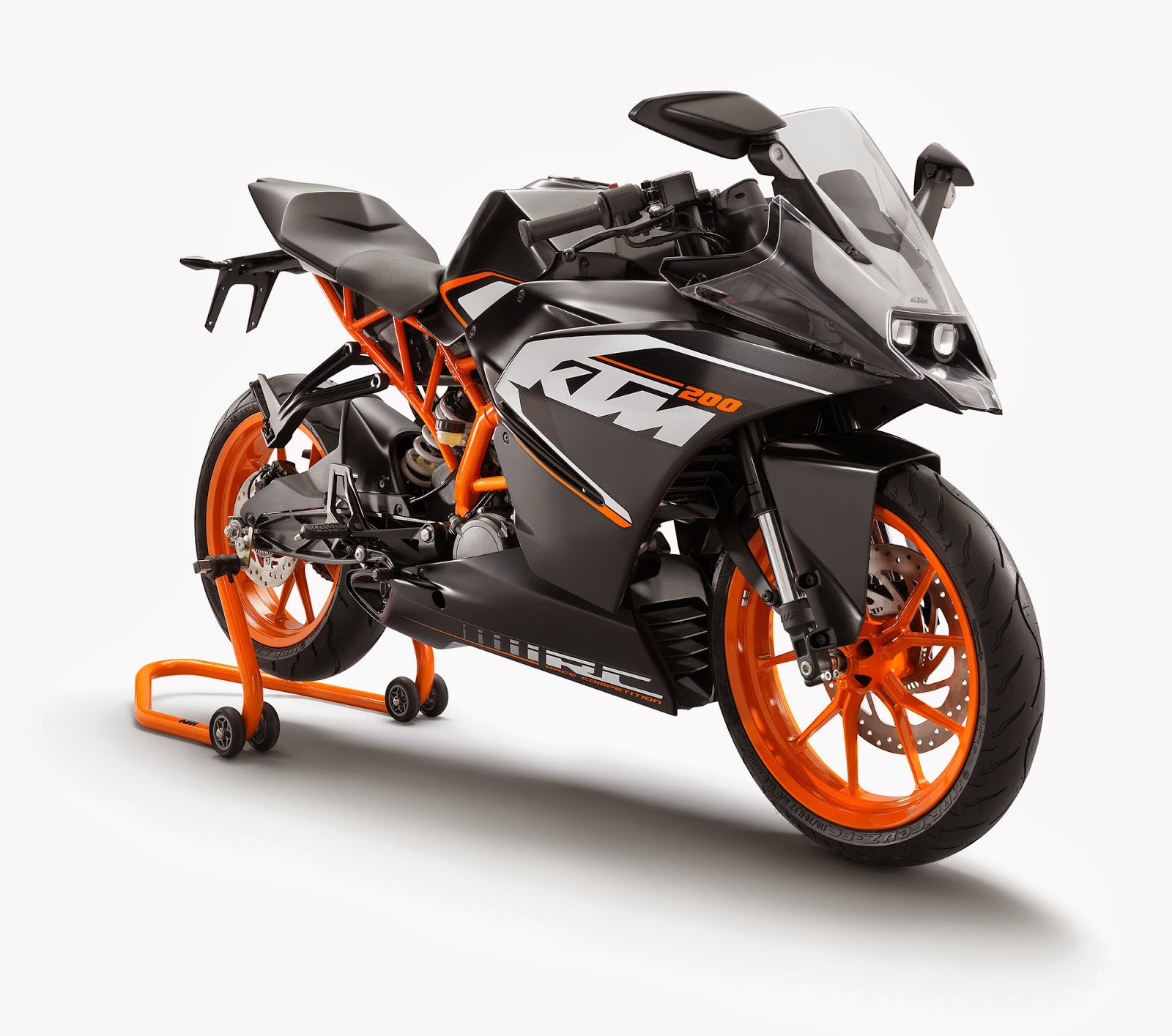

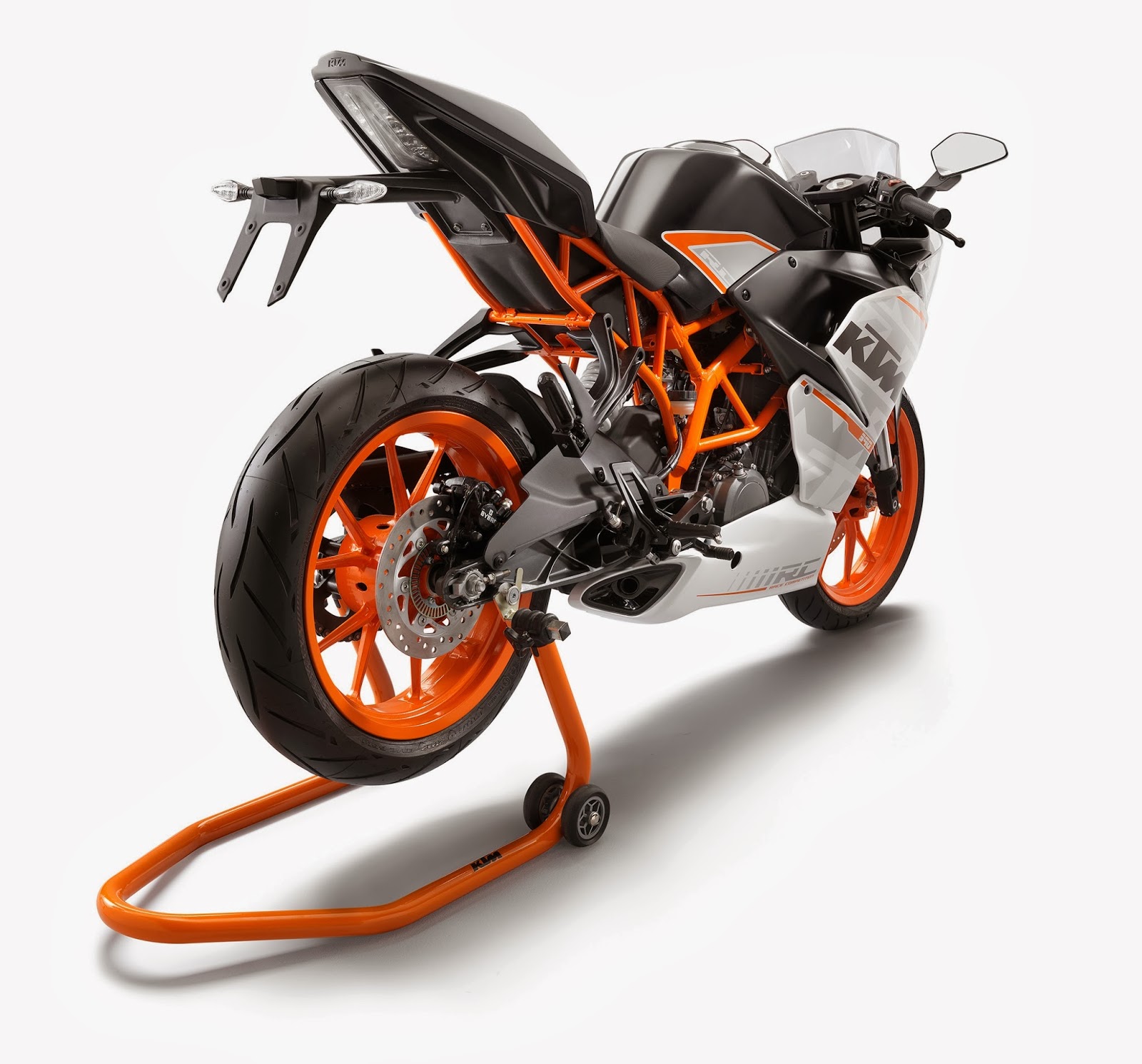

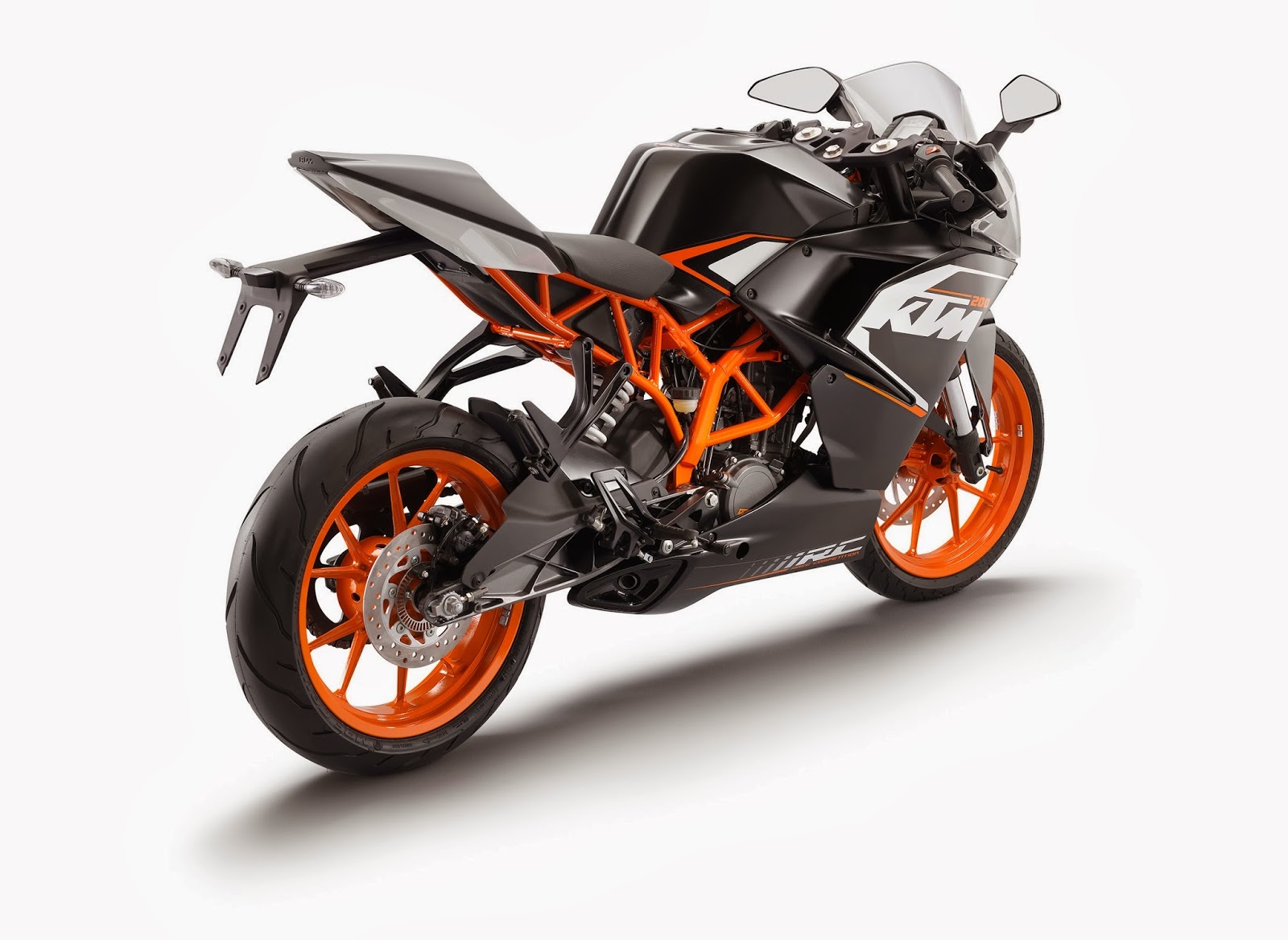

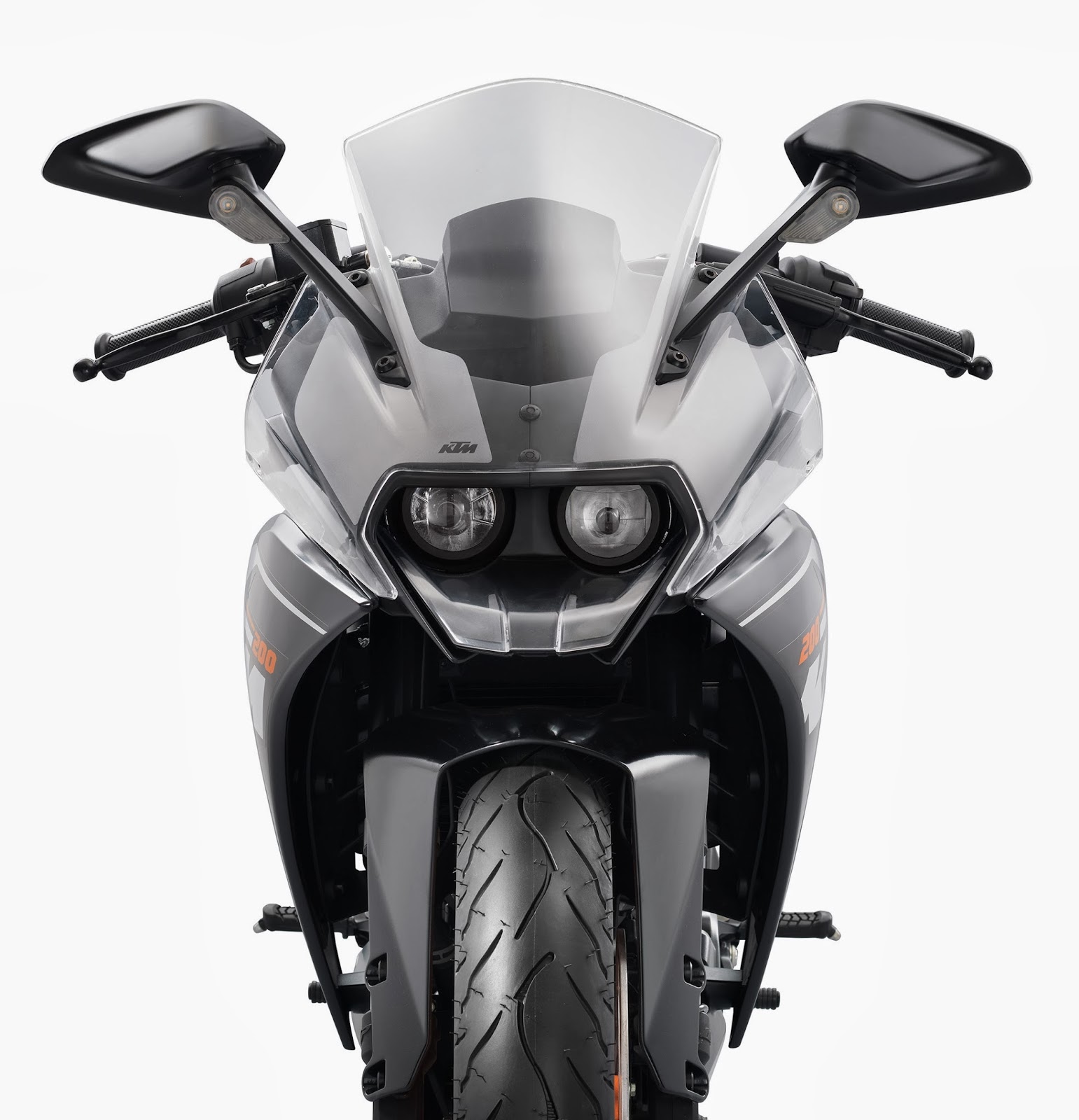

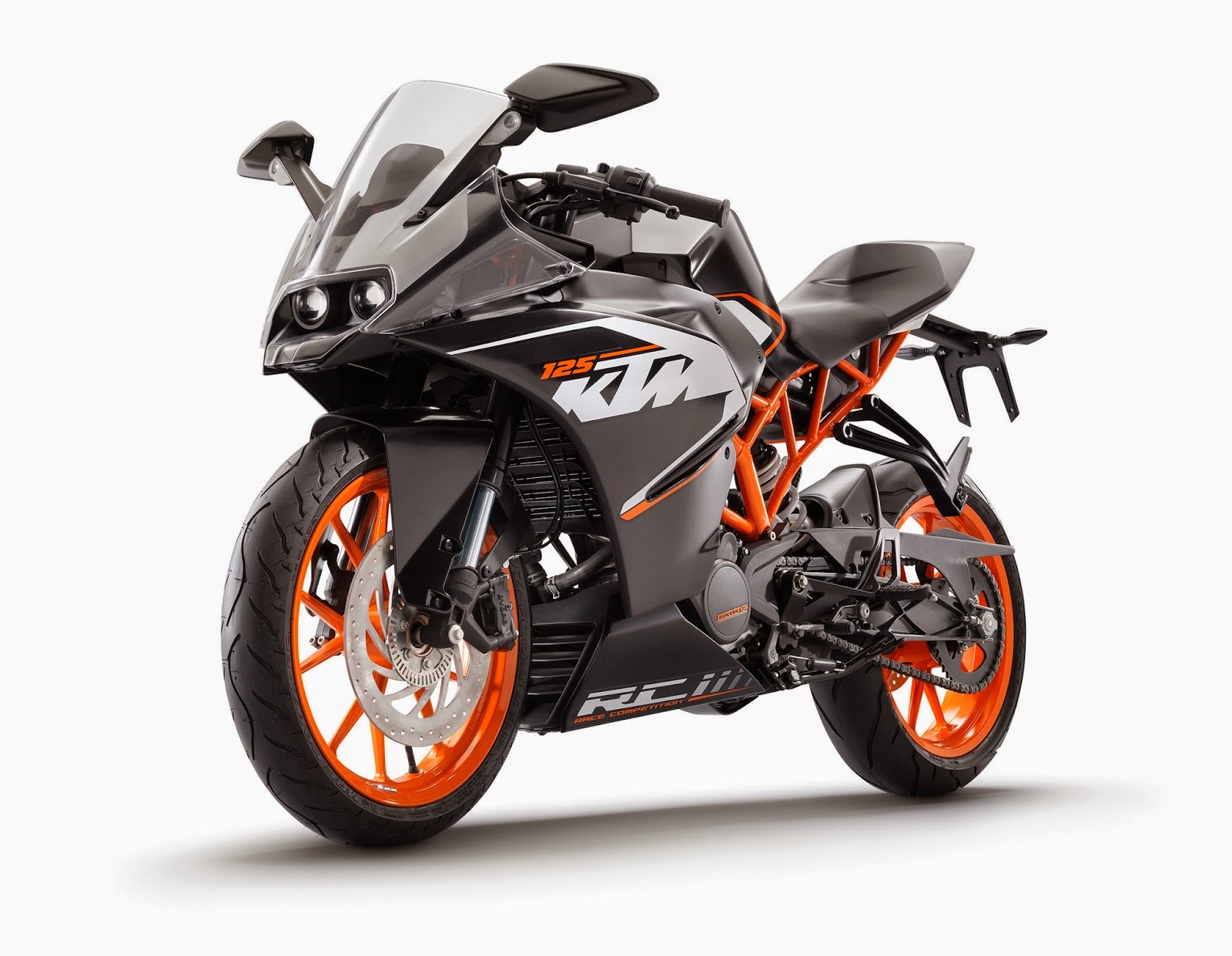

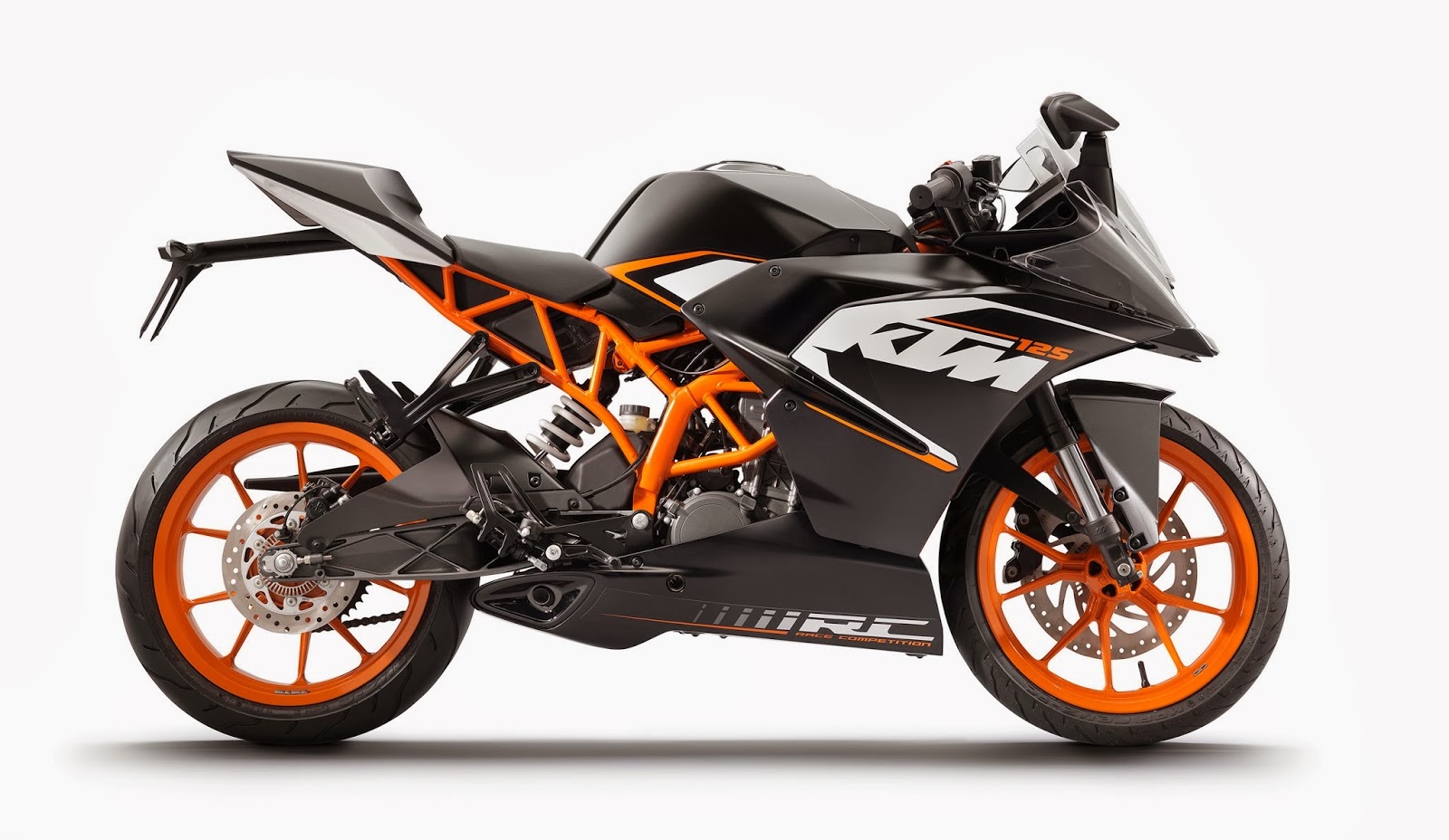

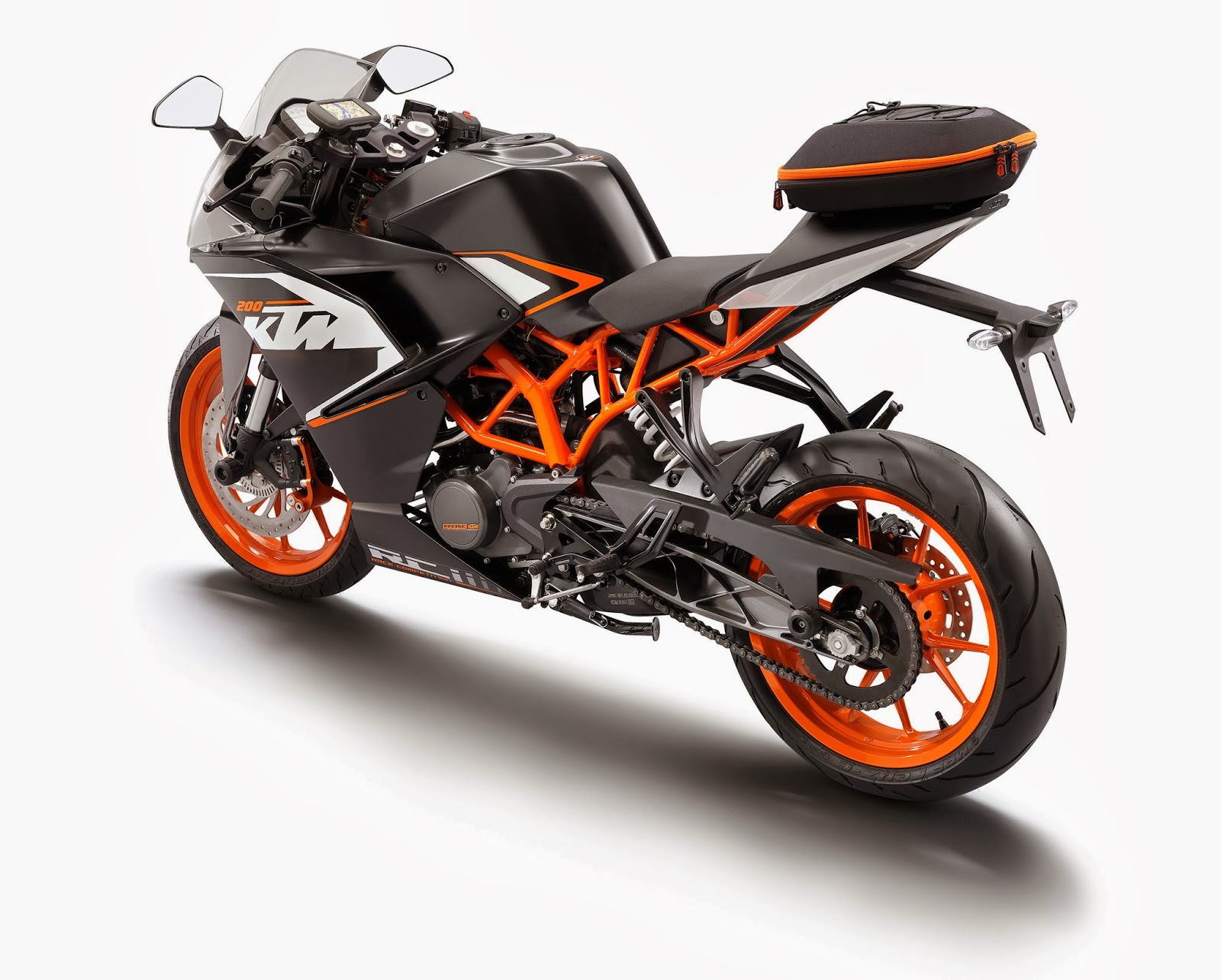

GILAMOTOR.com – KTM RC 390 yang akan diluncurkan di EICMA Milan Motor Show pada 5 November. Namun belum resmi diluncurkan, foto-foto detil dari KTM RC 390, RC 200 dan RC 125 sudah beredar di dunia maya.

Untuk KTM RC 390 dibekalu mesin 373,2 cc 4 tak, silinder tunggal. Mesinnya diklaim memiliki luaran tenaga 43 PS dan torsi 35 Nm dengan transmisi 6 percepatan.

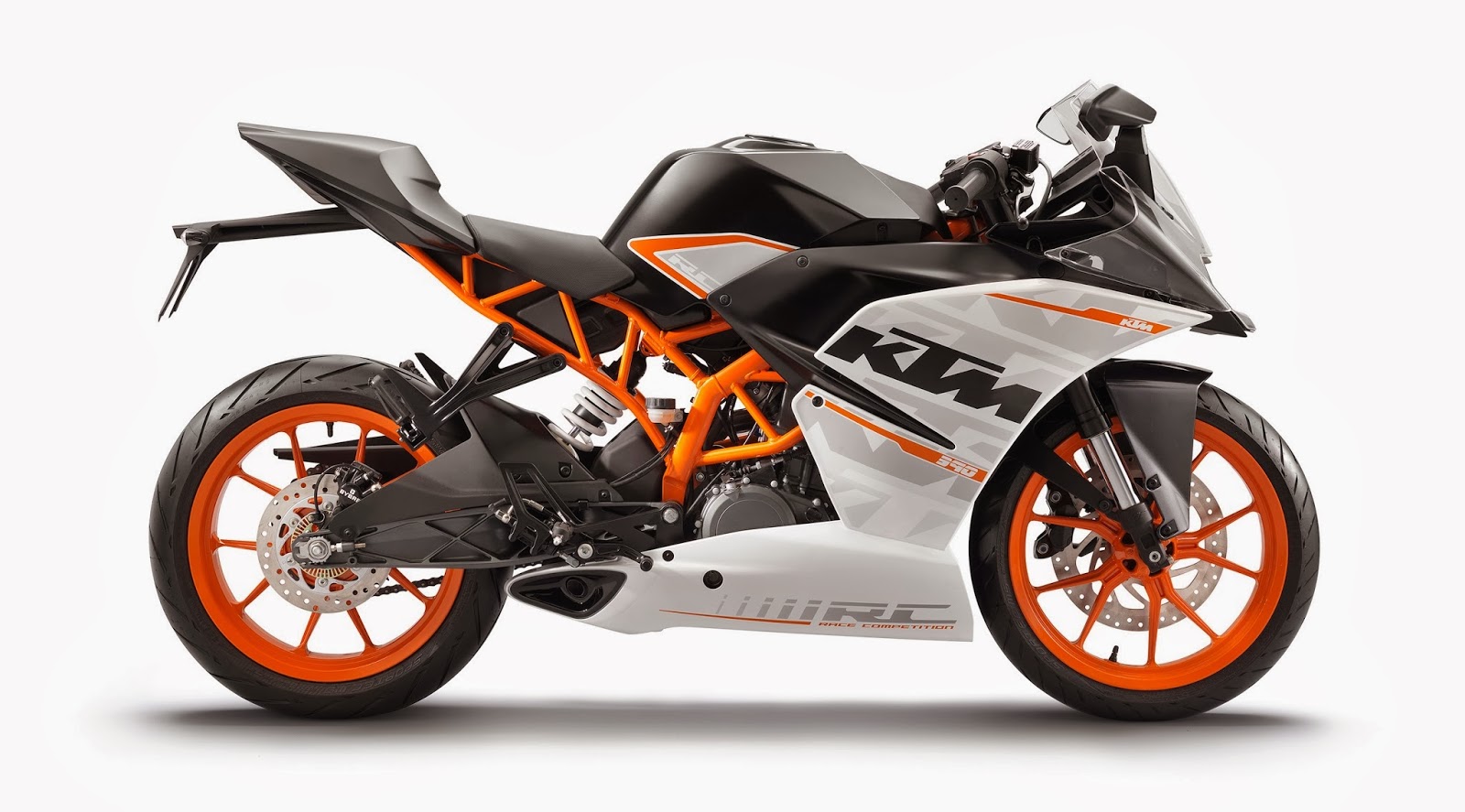

Spesifikasi KTM RC 390

ENGINE

Design 1-cylinder 4-stroke engine, water-cooled
Displacement 373.2 cm³
Bore 89 mm
Stroke 60 mm
Performance 32 kW (43PS)
Starting aid Electric starter
Transmission 6 speed, claw shifted
Engine lubrication Forced oil lubrication with 2 Eaton pumps
Primary gear ratio 30:80
Secondary gear ratio 15:45
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch Wet multi-disc clutch / mechanically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment

CHASSIS

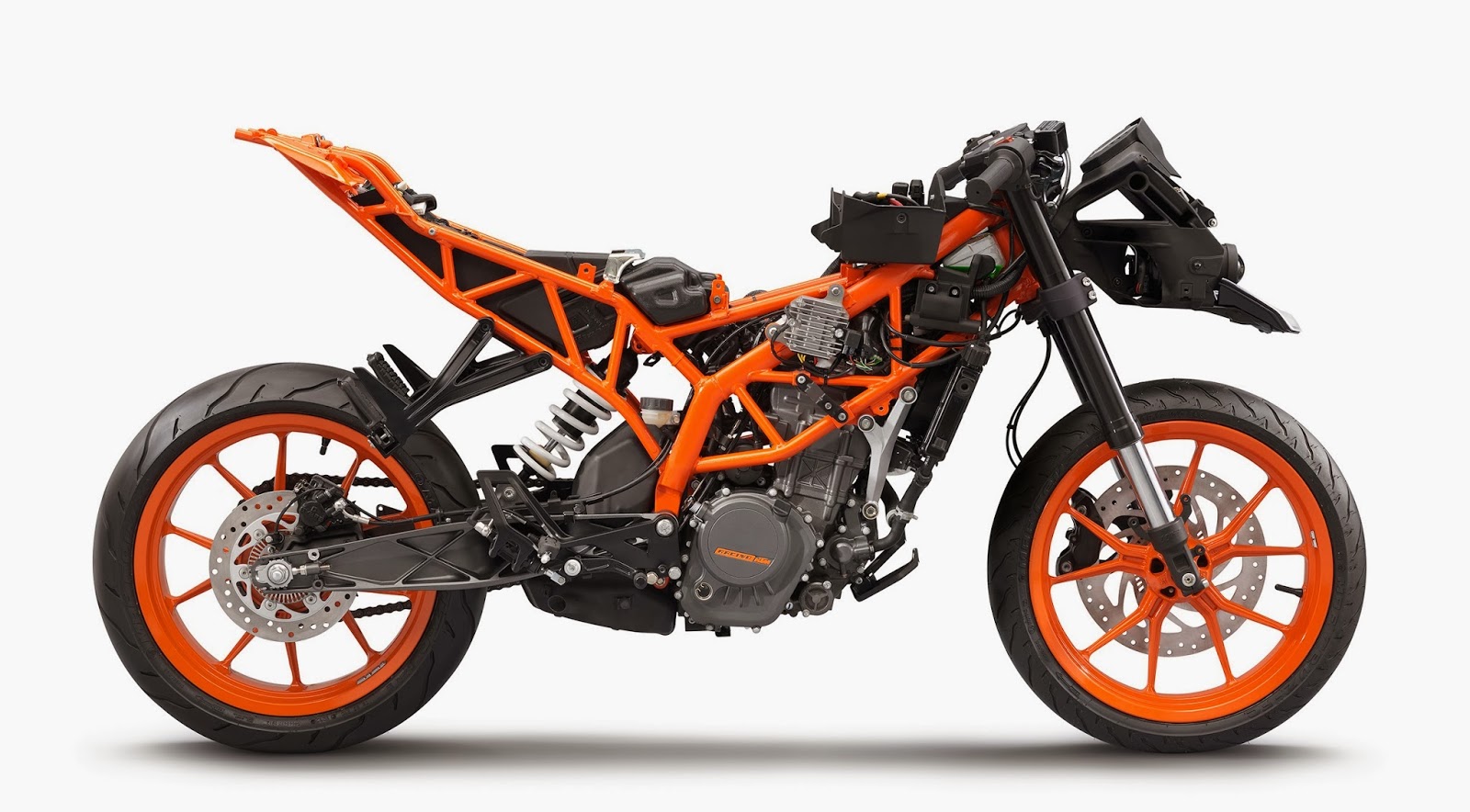

Frame Tubular space frame made from steel, powder-coated
Fork WP Suspension Up Side Down

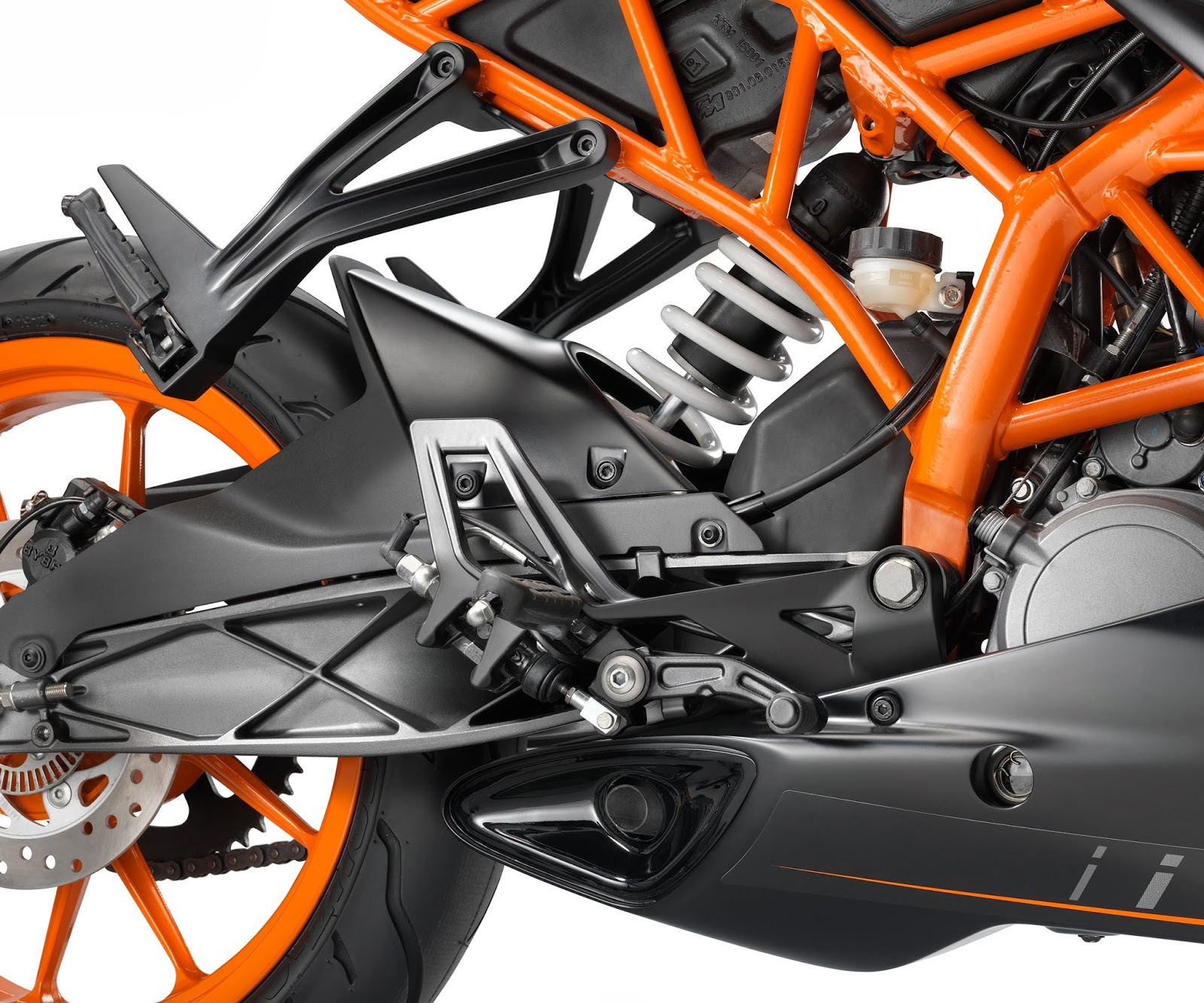

Shock absorber WP Monoshock
Suspension travel front 125 mm
Suspension travel rear 150 mm
Brake system Front Disc brake with four-pot brake caliper
Brake system Rear Disc brake with one-pot brake caliper, floating brake discs
Brake discs – diameter Front 300 mm
Brake discs – diameter Rear 230 mm
Chain 5/8 x 1/4” X‑Ring
Steering head angle 66.5°
Wheel base 1,340±15 mm
Ground clearance (unloaded) 178.5 mm
Seat height (unloaded) 820 mm
Total fuel tank capacity approx. 10 l
Unleaded premium fuel (95 RON)
Weight without fuel approx. 147 kg
